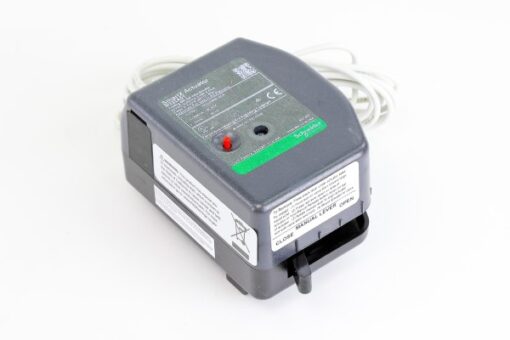

M332A01 Schneider Electric Actuator


SmartX, Actuator, Electric, Floating, Non-Spring Return, 24 VAC, Plenum, Rotary, NEMA 2

SKU: M332A01 Category:


Actuator: (M332A01):

  • Actuator Type: Electric
  • Control Signal: Floating
  • Loss of Power Type: Non-Spring Return
  • Power Input Voltage: 24 VAC
  • Leads and Connections: 10 ft Plenum
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 2
  • Product Line: Schneider Electric
  • Product Range: SmartX Actuator
  • Product Series: M332
  • Actuator Use: Ball Valves
Product Specifications
Actuator Housing MaterialPolymer
Actuator TypeElectric
Actuator UseBall Valves
Auxiliary Switch1 SPDT
Conduit Connection3/8 in
Control SignalFloating
Humidity5 to 95% non-condensing
IP Protection RatingIP11
Lead Length10 ft
Leads and ConnectionsPlenum
Loss of Power TypeNon-Spring Return
Material SealsPTFE
Mechanical MovementRotary
Motor TypeSplit capacitor synchronous
NEMA Protection RatingNEMA 2
OverrideAutomatic reset
Position IndicatorStroke indicator on bracket
Power Consumption Running VA2.50 VA
Power Input Frequency50 Hz
60 Hz
Power Input Voltage24 VAC
Power Input Voltage AC TolerancePlus 20% or minus 15%
Product RangeSmartX Actuator
Temperature Ambient Operating Range0 to 60 C (32 to 140 F)
Temperature Shipping and Storage Range-40 to 76 C (-40 to 168.8 F)

Additional information

Weight2 lbs
Dimensions5 × 8 × 4 in

, ,
