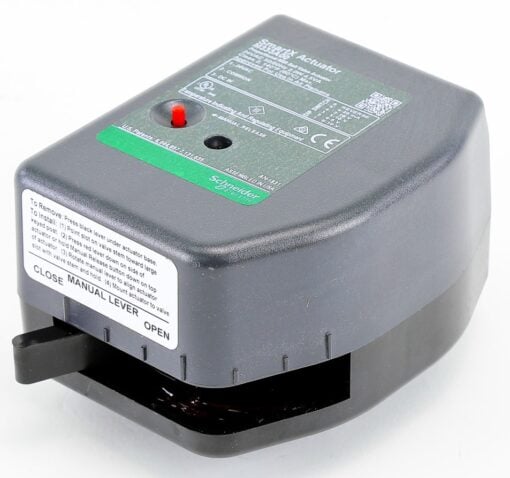

M333A01 Schneider Electric Actuator

$96.10

SmartX, Actuator, Electric, Proportional, 0-10 VDC/4-20 mAdc, Non-Spring Return, 24 VAC, Plenum, Rotary, NEMA 2

Description

Selection Guide

Installation Guide

Actuator:

  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC
  • Loss of Power Type: Non-Spring Return
  • Power Input Voltage: 24 VAC
  • Leads and Connections: 10 ft Plenum
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 2
  • Product Line: Schneider Electric
  • Product Range: SmartX Actuator
  • Product Series: M333
  • Actuator Use: Ball Valves



Product Specifications:

Actuator Type Electric
Actuator Use Ball Valves
Auxiliary Switch SPDT
Conduit Connection 3/8 in
Control Signal Proportional/Modulating
Control Signal Range 0 to 10 VDC
0 to 5 VDC
2 to 10 VDC
4 to 20 mAdc
5 to 10 VDC
Humidity 5 to 95% non-condensing
Item Signal Code MTS
Lead Length 10 ft
Leads and Connections Plenum
Loss of Power Type Non-Spring Return
Material Housing Polymer
Material Seals PTFE
Mechanical Movement Rotary
Motor Type Split capacitor synchronous
Override Yes
Override Type Lever
Position Indicator Yes
Position Indicator Type Housing scale
Power Consumption Running VA 2.80 VA
Power Consumption Running VA at 60 Hz 2.80
Power Input Frequency 50 Hz
60 Hz
Power Input Voltage 24 VAC
Power Input Voltage AC Tolerance Plus 20% or minus 15%
Product Line Schneider Electric
Product Range SmartX Actuator
Protection Rating NEMA 2
Rotation Adjustable No
Temperature Ambient Operating Range 0 to 60 C (32 to 140 F)
Temperature Shipping and Storage Range -40 to 76 C (-40 to 168.8 F)
Web Group B01

Additional information

Weight 3 lbs
Dimensions 4 × 7 × 5 in
Manufacturer

,

Part Number

M333A01
