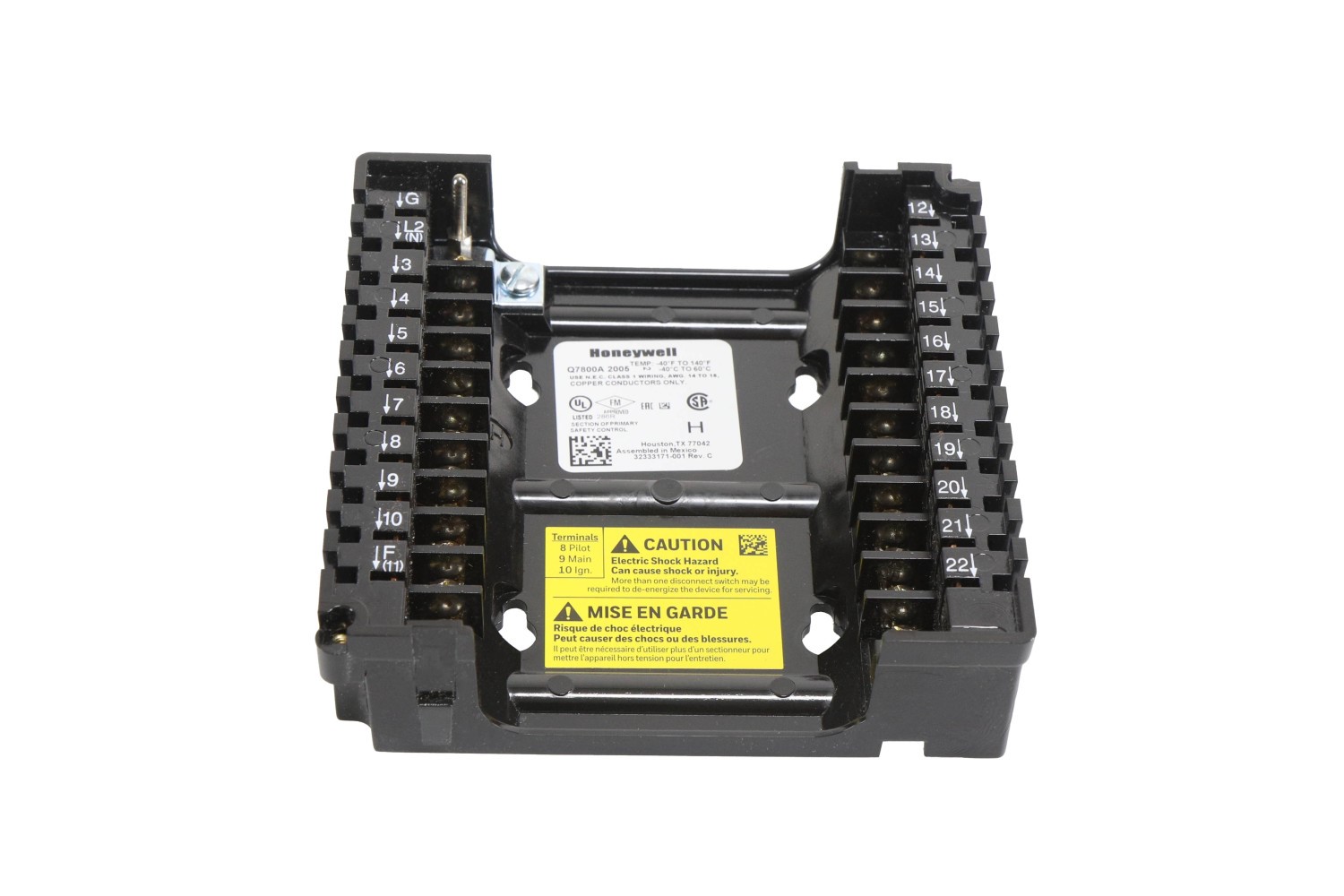

Q7800A2005 Honeywell Wiring Base

Datasheet

Overview

Burner, panel or wall mount subbases for 7800 SERIES relay modules and S7830A Expanded Annunciator.

Features

• Makes electrical connections for 7800 SERIES relay modules or S7830A Expanded Annunciator through bifurcated contacts.
• Provides terminals for field wiring.
• Twenty-two terminals.

Product Specifications

Application	Wiring Subbase
Dimensions (in.)	4 31/32 in. wide x 4 31/32 in. high x 1 13/32 in deep
Dimensions (mm)	126 mm wide x 126 mm high x 36 mm deep
Used With	RM/EC7800 Flame Relay
Weight (lb)	7 oz
Weight (kg)	0.20 kg
Comments	Panel mount
Approvals, Underwriters Laboratories Inc.	Component Recognized, File No. MP268; Guide No. MCCZ2.
Approvals, Canadian Standards Association	Certified, File No. LR95329-3.
Shipping and Storage Temperature Range (F)	-40 F to +140 F
Shipping and Storage Temperature Range (C)	-40 C to +60 C
Vibration	0.5 G environment
European Directives	EN60730
Enclosure Rating	NEMA 1
Weight (oz)	7
