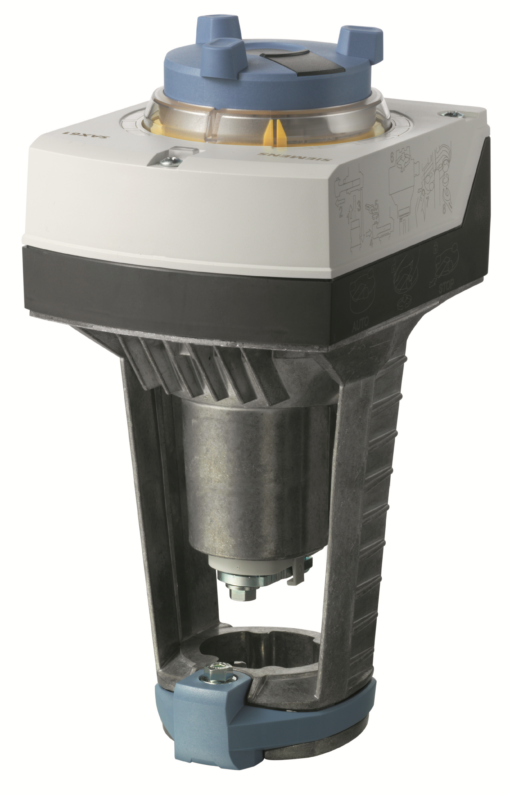

SAX61.03U Siemens Electronic Valve Actuator

$199.00

Flowrite Actuator, 24Vac, 0-10Vdc / 4-20
mA Proportional NSR

Description

Tech Sheet

Installation Manual

The Flowrite SAX Valve Actuator is used with Flowrite Valves with 3/4-inch stroke. This electronic valve actuator requires 24 Vac supply to provide 0 to 10 Vdc or 4-20 mA proportional control of the valve. Other features of this valve actuator include UL listed for plenum installations, direct-coupled installation requires no special tools or adjustments, manual override with visual postion indication, non-spring return, and 180 lb (800N) nominal force with 30 sec run time.

Additional information

Weight4.114 lbs
Dimensions6.4 × 5.2 × 10.4 in
Part Number

SAX61.03U

Manufacturer
