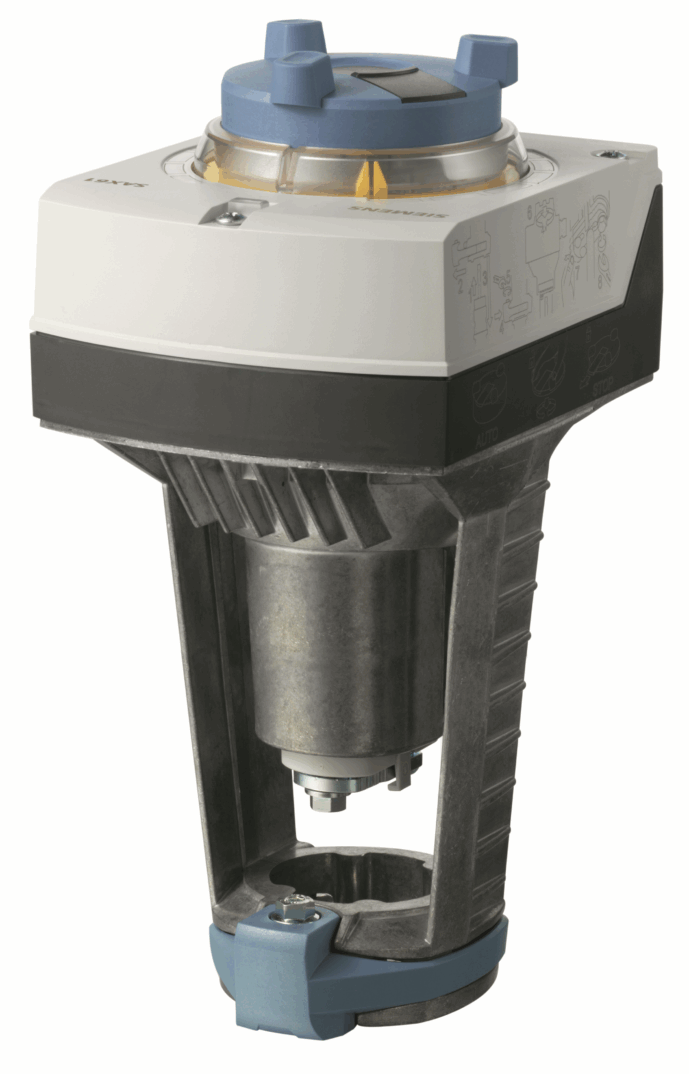

SAX81.03U Siemens Electronic Valve Actuator


Flowrite Actuator, 24 Vac, Floating Control, Non-Spring Return


Tech Sheet

Installation Manual

The Flowrite SAX Valve Actuator is used with Flowrite Valves with 3/4-inch stroke. This electronic valve actuator requires 24 Vac supply to provide floating control of the valve. Other features of this valve actuator include UL listed for plenum installations, direct-coupled installation requires no special tools or adjustments, manual override with visual postion indication, non-spring return, and 180 lb (800N) nominal force with 30 sec run time.

Additional information

Weight 4.074 lbs
Dimensions 6.3 × 5.3 × 10.6 in
Part Number
