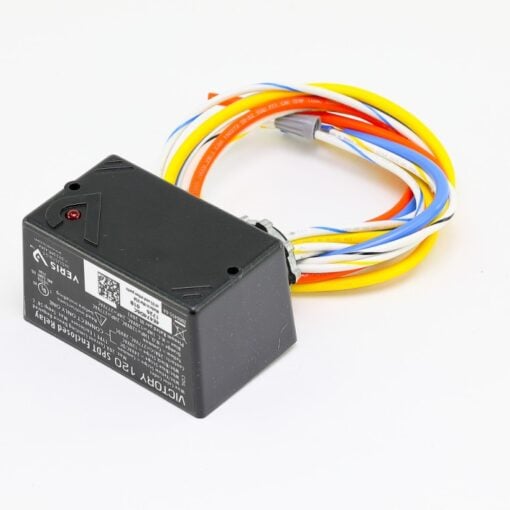

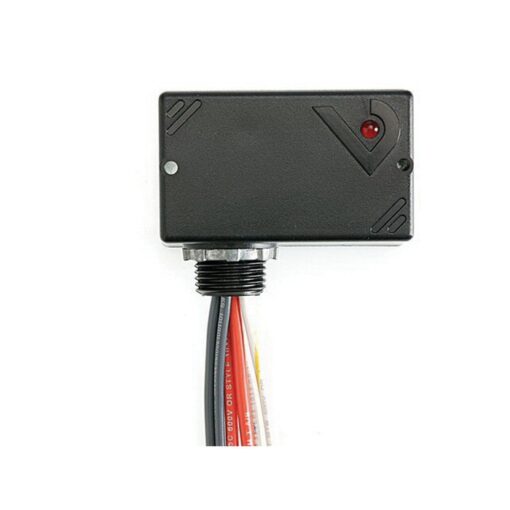

The Veris V120 Coil: 24VAC/DC, 120VAC, Contact: 20A SPDT
SPECIFICATIONS
| Application | : | Building Automation Systems |
| Electrical Wiring Size | : | Coil: 18 AWG (0.25 mm²), Contacts and HOA: 12 AWG (4 mm²) |
| Hand-Off-Auto | : | No |
| Model | : | V120 |
| Mounting | : | DIN | Wall |
| Operating Temperature | : | -29 – 131 °F (-34 – 55 °C) |
| Product Certification | : | UL |
| Product Type | : | Relay |
| Range | : | Victory Series |
| Relay Coil Voltage | : | 24 VAC/DC, 120 VAC |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | 20 A @ 28 VDC | 20 A @ 277 VAC |
| Relay Poles/Throw | : | SPDT |
| Warranty | : | 5 years |
FEATURES
The Victory 120 20 A SPDT enclosed relays combine a power duty relay with a high level of field-selectability and versatility. The devices are quick and easy to install using the threaded nipple mount. With no need for a dedicated field enclosure, this series is ideal for retrofit projects.
- Sleek field enclosure reduces the need for panel space
- The nipple mount feature allows the V120 series to be mounted to any electrical enclosure easing installation
- HP ratings make the V120 ideal for control of fractional HP motors
- Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
- UL 508 listed – designed and listed for field installation, makes electrical inspection a snap
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 4 × 2 in |
| Part Number | V120 |
| Manufacturer |
