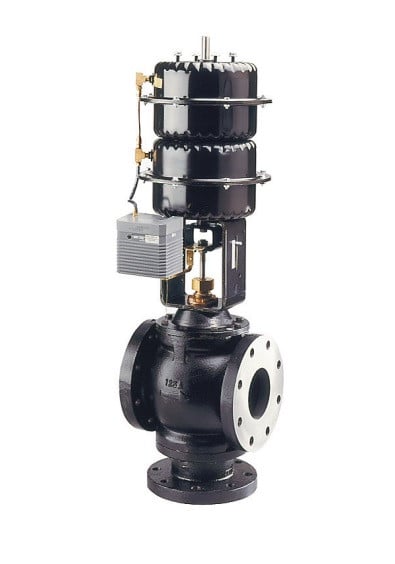

The Johnson Controls VG2831TM+843E01 2.5″MX.& MP84 ACT.9-13#; 2 1/2INCH MIX IRON Valve MP84 9-13LB Spring CV 54 W/V9502 Positioner

VG2000 Series Valve

VG2000 Series Cast Iron Flanged Globe Valves are designed primarily to regulate the flow of water and steam in response to the demand of a controller.

MP8000 Series Actuators

MP8000 Series Pneumatic Actuators are designed to accurately position hot-water, chilled-water, and steam-control valves in response to a pneumatic signal from a controller.

Features

VG2000 Series Valve

• controls hot or chilled water, 35 psig saturated steam
• ANSI cast iron 125 flange meets ANSI B16.1
• ANSI III closeoff, leakage: 0.1% of maximum flow
• 175 psig static pressure rating at water temperatures 35 to 150°F; decreasing to 125 psig at 281°F
• maximum recommended operating pressure drop: 35 psig
• maximum actuator supply pressure: 25 psig

MP8000 Series Actuators

• three sizes: 25, 50, and 100 sq. in. effective diaphragm area
• spring action field reversible
• optional pneumatic or electro-pneumatic positioner
