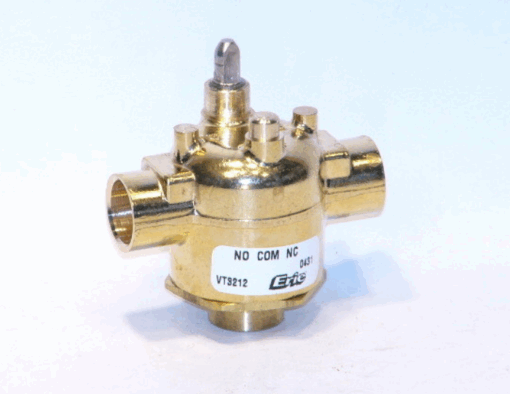

VT3212 Schneider Electric Erie Valve

Valve Body (VT3212):

• Body Size: 1/2 in
• Configuration: 3-Way Mixing/Diverting
• Type: Zone
• Connection: Sweat
• Material Trim: Brass
• Flow Coefficient: 3 Cv
• Control Media: Glycol 25 to 50% and Water
• Product Line: Schneider Electric
• Product Range: Erie PopTop
• Product Series: VT3

Product Alert: Not for use with steam

Product Specifications

Body Size	15 mm (1/2 in)
By Schneider	Yes
California Residents	WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Configuration	3-Way Diverting
	3-Way Mixing
	3-Way Mixing/Diverting
Connection Type	Sweat
Flow Characteristic	Quick open
Flow Coefficient	2.59 kvs
	2.99 cv
Material Body	Forged brass
Material Paddle	Buna N
Material Seat Port A	Brass
Material Stem	Nickel-plated
Material Trim	Brass
Media Compatibility	Glycol 25%
	Glycol 30%
	Glycol 50%
	Water
Pipe Size	1/2 in
Pressure Allowable Static	400 psi
Pressure Class	400 ANSI
Product Range	Erie PopTop
Product Series	VT3
Seat Leakage Port A	ANSI IV (0.01%)
Stem Movement	Rotary
Temperature Range Fluid	0 to 93 C (32 to 200 F)
Type	Zone
