D-3153-1 Johnson Controls Damper Actuator

Datasheet

Installation Guide

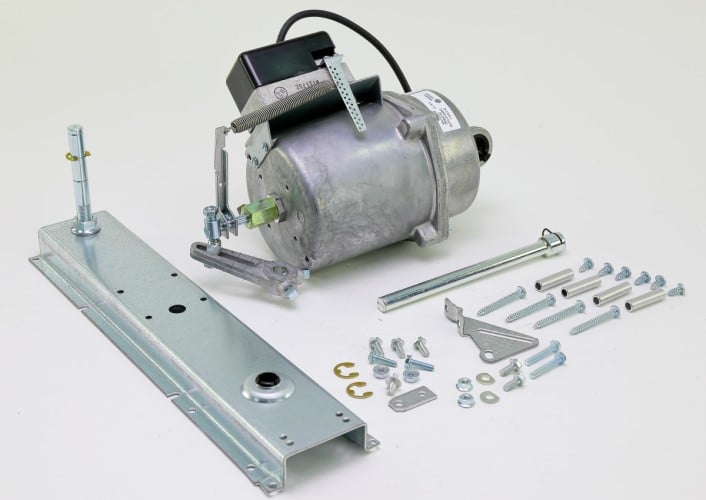

The Johnson Controls D-3153-1 Damper Actuator; 8-13#Spring W/POS 3″ STRK 105# Power STROKE; Damper Actuator, 8-13 Psi Spring Range, Includes D-9502 Positioner and Universal Mounting Bracket, 3″ Stroke, 0-20 Psig Control Air Pressure, 1/8″ NPT Straight Barbed Fitting Air Connection, 15″ Diaphragm, Die Cast Aluminum Body

The D-3153 Pneumatic Actuator is a multipurpose positioning device used primarily for operating ventilating dampers in response to the output signals of a pneumatic controller or electro-pneumatic transducer. The D-3153 Pneumatic Actuator is used with dampers up to a maximum area of 16 ft2 (1.5 m2) for proportional volume control, and 25 ft2 (2.3 m2) for 2-position actuation (provided that the torque requirements are compatible with the specific application). Refer to the D-3153 Pneumatic Actuator Product Bulletin (LIT-2681054P) for important product application information.

Features

• all-aluminum housing – creates a lightweight, non-combustible actuator
• telescoping linkage – provides fast, flexible installation
• long life and reliable design – places over a million actuators now in service
• 2-way swivel head – ensures full power delivery
