H708 Veris Current Switch Veris

Datasheet

Installation Guide

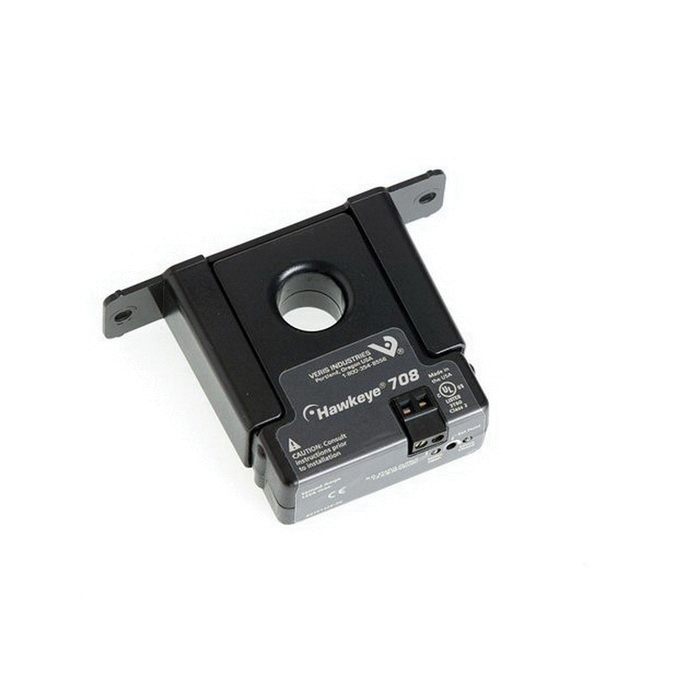

The Veris H708 Veris Current Switch SolidCore Current Switch,Adj,Calibration LEDs,Range:1-135AAC,Output:N.O,1.0

Specifications:

Application	:	Building Automation Systems
Current Measurement Range	:	1 – 135 A
Current Sensor type	:	Current Switch, AC
Electrical Wiring Size	:	24 – 14 AWG (0.2 – 2.1 mm²)
Measurement Type	:	AC Current
Model	:	H708
Monitored Frequency Range	:	50 – 60 Hz
Monitored Wire Size	:	0.7″ (18 mm)
Mounting	:	Solid Core
Operating Humidity	:	10 – 90% RH, non-condensing
Operating Temperature	:	5 – 140 °F (-15 – 60 °C)
Output Specifications	:	N.O. 1 A @ 30 VAC/DC
Outputs	:	Switch output
Product Certification	:	UL
Product Type	:	Sensor
Range	:	HX08 Series
Relay Coil Voltage	:	None
Relay Contact Ratings	:	None
Relay Poles/Throw	:	None
Setpoint	:	Adjustable
Warranty	:	5 years



Features:

Hawkeye H708 adjustable current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear or other mechanical failure on unit vents, exhaust fans, recirculation pumps and other fixed loads down to as little as 1/5 hp.

• Retrofit or new construction – high performance devices in solid-core housings
• Adjustable trip point – precise current trip point setting
• Low setpoint – minimum trip point as low as 1 A, no need for multiple wraps of the conductor through the sensor, even on loads as small as 1/5 hp
• Small size – fits easily inside small enclosures
• Self-gripping iris on split-core housings for easy installation
• Status LEDs – for easy setup and local indication
• Induced from monitored conductor sensor power
