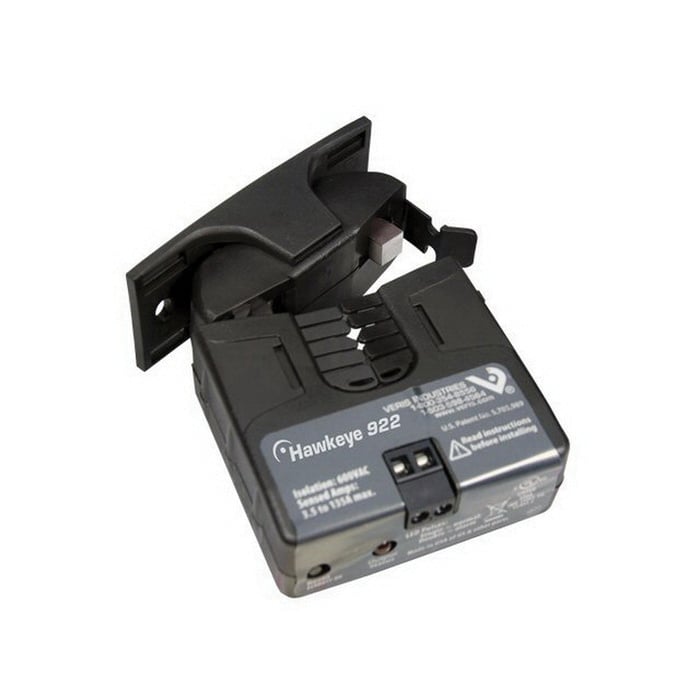

The Veris H922120A Current Transducer,Split-Core,Fxd0-120A,0-5VDC
SPECIFICATIONS
Application | : | Building Automation Systems |
Current Measurement Accuracy | : | ±2% of F.S. above 12 A |
Current Measurement Range | : | 0 – 120 A |
Current Sensor type | : | Current Transducer, AC |
Electrical Wiring Size | : | 24 – 14 AWG (0.2 – 2.1 mm²) |
Measurement Type | : | AC Current |
Model | : | H922120A |
Monitored Frequency Range | : | 50 – 60 Hz |
Monitored Wire Size | : | 0.8″ (21 mm) |
Mounting | : | Split Core |
Operating Humidity | : | 10 – 90% RH, non-condensing |
Operating Temperature | : | 5 – 140 °F (-15 – 60 °C) |
Output Specifications | : | 4 – 20 mA |
Outputs | : | Analog output |
Product Certification | : | UL | CE |
Product Type | : | Sensor |
Range | : | HX22 Series |
Relay Coil Voltage | : | None |
Relay Contact Ratings | : | None |
Relay Poles/Throw | : | None |
Warranty | : | 5 years |
FEATURES
The Hawkeye 922120A provide accurate load trending information with a proportional 0 to 5 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers.
- Self-powered analog current sensor simplifies installation
- No external power required for sensor
- Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
- Factory calibrated ranges for increased flexibility and resolution
- No jumpers on unit, reduces installation error
- Induced from monitored conductor sensor power
