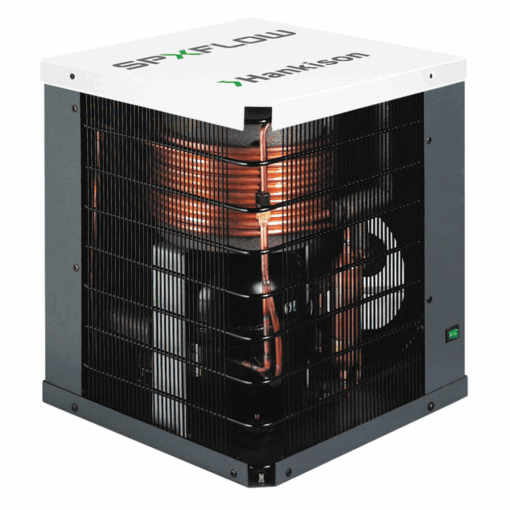

The HPR5-10 Refrigerated Air Dryer by Hankison features:
- Integral Moisture Separator
- Float drain on HPR5-10
- Models HPR5-10 and HPR15 designed to adapt to legacy Hankison
HPR & HPRN Series non-cycling refrigerated compressed air dryers offer the right combination of technology and simplicity to keep your air system at a dry, 38°F (+3°C) pressure dew point, from 5 through 500 scfm. These dryers are built for durability, in a space-saving design. Sturdy sheet steel is formed and protected by an epoxy-based powdercoat finish.
PRODUCT TYPE | HPR/HPRN DRYER |
MODEL | HPR5-10 FP |
MODEL SIZE | 10 |
FLOW RATING | 10 SCFM |
CONNECTION | 3/8″ OD |
DESIGN PRESSURE | 250 PSIG |
DESIGN TEMP | 120°F |
HEIGHT | 15 |
WIDTH | 13 |
DEPTH | 13 |
WEIGHT | 64 LBS |
REFRIGERANT | R-134a |
COOLING | Air Cooled |
CERTIFICATION | UL/CSA-ETL Certification |
VOLTAGE | 115V/1PH/60HZ |
KW RATING | 0.91 |
