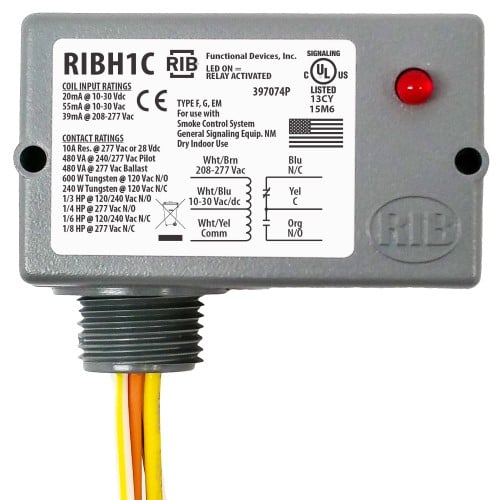

RIBH1C Functional Devices Enclosed Relay
Enclosed Relay 10Amp SPDT 10-30Vac/dc/208-277Vac
| # Relays & Contact Type: | One (1) SPDT Continuous Duty Coil |
| Expected Relay Life: | 10 million cycles minimum mechanical |
| Operating Temperature: | -30 to 140° F |
| Humidity Range: | 5 to 95% (noncondensing) |
| Operate Time: | 20ms |
| Relay Status: | LED On = Activated |
| Dimensions: | 1.70˝ x 2.80˝ x 1.50˝ with .50˝ NPT nipple |
| Wires: | 16˝, 600V Rated |
| Approvals: | UL Listed, UL916, UL864, C-UL |
| California State Fire Marshal, CE, RoHS | |
| Housing Rating: | UL Accepted for Use in Plenum, NEMA 1 |
| Gold Flash: | Yes |
| Override Switch: | No |
Additional Information
| Weight | 3 lbs |
|---|---|
| Dimensions | 4 × 5 × 3 in |
| Part Number | RIBH1C |
| Manufacturer |
