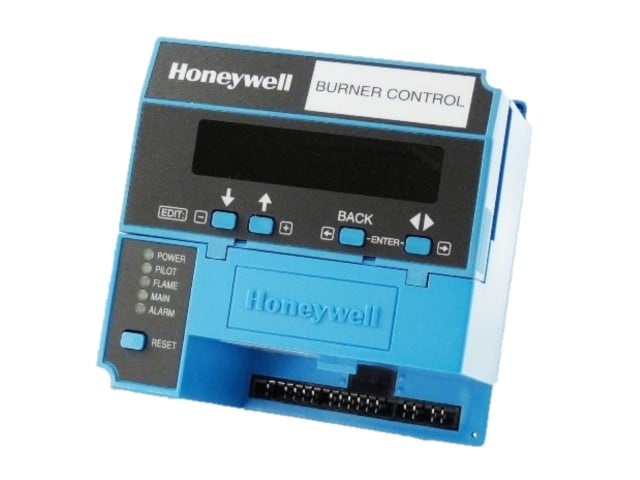

RM7800G1018 Honeywell Burner Control
$3,295.00
The Honeywell RM7800G1018 120 V/60 HZ. AirFlow Switch CHECK OPTION. Microprocessor Based Integrated Burner Control, For use with Automatically Fired Gas, Oil, Coal or Combination Fuel Single Burner Applications, 120Vac, 10 Second or 15 Second, 30 Second or Intermittent Main Flame Establishing Period, 4 Second or 10 Second Pilot Flame Establishing Period, Interrupted Pilot, Selectable Second Stage Pilot Valve, Running Interlocks, Includes S7800 Display, LHL-LF Proven, 15 Second Post Purge,User Selectable Air Flow Check, Early Spark Termination of 5 Seconds, -40-140 Degree Ambient Temperature Range
The Honeywell RM7800G1018 120 V/60 HZ. AirFlow Switch CHECK OPTION..
Overview
Microprocessor-based integrated burner control for automatically fired gas, oil, coal or combination fuel single burner applications. Provides safety, functional capability and features beyond conventional controls.
Features
- Functions include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and trouble shooting.
- Access for external electrical voltage checks.
- Application flexibility and communication interface capability.
- Five LEDs provide sequence information.
- Five function Run/Test Switch.
- Interchangeable plug-in flame amplifiers.
- Local or remote annunciation of operation and fault information (optional).
- Nonvolatile memory retains history files and lockout status after loss of power.
- Compatible with existing Honeywell flame detectors.
- Includes Keyboard Display Module.
Product Specifications
|
Application |
Programming Control |
|
Dimensions (in.) |
5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase |
|
Dimensions (mm) |
127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase |
|
Weight (lb) |
1 lb 10 oz |
|
Weight (kg) |
7 kg |
|
Comments |
Includes S7800 Display, LHL-LF Proven |
|
Frequency |
50 Hz; 60 Hz (±10%) |
|
Approvals, Underwriters Laboratories Inc. |
Component Recognized, File No. MP268; Guide No. MCCZ. |
|
Approvals, Canadian Standards Association |
Certified, File No. LR95329-3. |
|
Voltage |
120 Vac (+10, -15%) |
|
Shipping and Storage Temperature Range (F) |
-40 F to +140 F |
|
Shipping and Storage Temperature Range (C) |
-40 C to +60 C |
|
Approvals, Federal Communications Commission |
FCC Part 15, Class B, Emissions. |
|
Flame Establishing Period – Pilot |
4 sec or 10 sec |
|
Flame Establishing Period – Main |
10 sec, or 15 sec, or 30 sec, or Intermittent |
|
Interlocks |
Running |
|
Preignition |
Yes |
|
PrePurge |
Determined by ST7800A Purge Timer Card |
|
PostPurge |
15 sec |
|
Early Spark Termination |
Yes, 5 sec |
|
Required Components |
Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card. |
|
AirFlow Check |
User selectable |
|
Second Stage Pilot Valve |
selectable |
|
Pilot Type |
interrupted |
|
Vibration |
5 G environment |
|
Approvals, Swiss RE |
Acceptable |
|
Approvals, Factory Mutual |
Report No. 1V9AO.AF. |
| Weight | 4 lbs |
|---|---|
| Dimensions | 9 × 9 × 9 in |
| Manufacturer |
