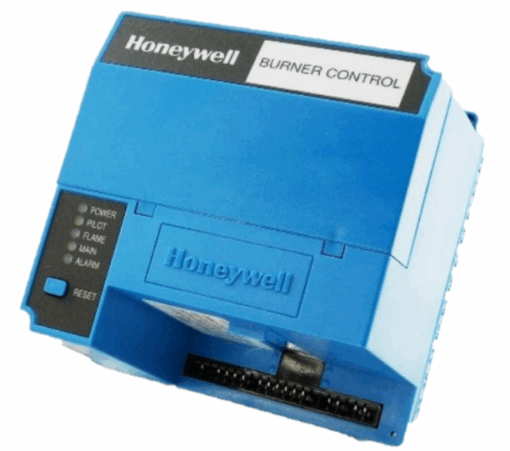

RM7890B1014 Honeywell Burner Control
$560.00
On-Off Primary Control, For use with Automatically Fired Gas, Oil, Coal or Combination Fuel Single Burner Applications, 120Vac, Intermittent Pilot, 4 Second or 10 Second Intermittent Flame Establishing Period, Nonvolatile Memory, Selectable Relight or Lockout on Loss of Flame, -40-140 Degree Ambient Temperature Range, Includes Shutter Drive Capability
3 in stock (can be backordered)
Overview
Microprocessor-based integrated primary burner control for automatically fired gas, oil or combination fuel single burner applications. Provides level of safety, functional capability and features beyond conventional controls.
Features
- Functions include automatic burner sequencing, flame supervision, system status indication, system or self diagnostics and troubleshooting.
- Subbase and amplifier are required for operation.
- Options include PC interface, keyboard display module, DATA CONTROLBUS™ MODULE, remote display module, first-out expanded annunciator, and COMBUSTION SYSTEM MANAGER™ software.
- Five LEDs provide sequence information.
- Interchangeable plug-in flame amplifiers.
- Optional local or remote annunciation of operation and fault information.
- Nonvolatile memory retains history files and sequencing status after power loss.
- Optional remote reset capability.
- Optional report generation.
- Selectable relight or lockout on loss of flame.
Product Specifications
|
Application |
On-Off Primary Control |
|
Dimensions (in.) |
5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase |
|
Dimensions (mm) |
127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase |
|
Weight (lb) |
1 lb 13 oz |
|
Weight (kg) |
8 kg |
|
Comments |
Includes Shutter Drive Capability |
|
Frequency |
50 Hz; 60 Hz (±10%) |
|
Approvals, Underwriters Laboratories Inc. |
Component Recognized, File No. MP268; Guide No. MCCZ. |
|
Approvals, Canadian Standards Association |
Certified, File No. LR95329-3. |
|
Voltage |
120 Vac (+10, -15%) |
|
Shipping and Storage Temperature Range (F) |
-40 F to +140 F |
|
Shipping and Storage Temperature Range (C) |
-40 C to +60 C |
|
Approvals, Federal Communications Commission |
FCC Part 15, Class B, Emissions. |
|
Flame Establishing Period – Pilot |
4 sec or 10 sec |
|
Flame Establishing Period – Main |
Intermittent |
|
Required Components |
Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier. |
|
Pilot Type |
intermittent |
|
Vibration |
5 G environment |
|
Approvals, Swiss RE |
Acceptable |
|
Approvals, Factory Mutual |
Report No. OX4A5.AF. |
| Weight | 4 lbs |
|---|---|
| Dimensions | 9 × 9 × 9 in |
| Manufacturer |
