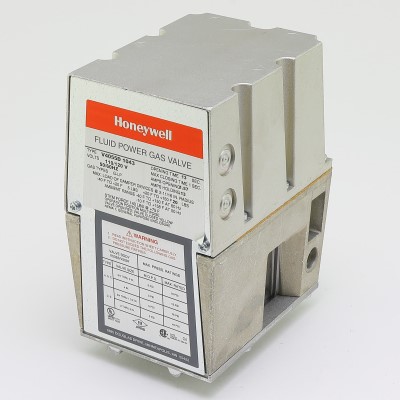

V4055D1043 Honeywell INDUSTRIAL Fluid Power Actuator

Datasheet

The Honeywell V4055D1043 Combustion valve actuator 120/60; 13 SECOND OPENING TIME

Overview

Use in combination with V5055 or V5097 Gas Valves to control gas supply to commercial and industrial burners.

Features

• Use where smooth light off is important.
• One-second maximum closing time.
• Continuously displays the valve position with a red indicator when open and a yellow indicator when closed.
• Mount in any position directly to valve bonnet with three setscrews.
• Provide final safety shutoff service when used with V5055 or V5097 Gas Valves.

Product Specifications

Maximum Safe Operating Pressure (psi)	5 psi
Maximum Safe Operating Pressure (kPa)	34 kPa
Temperature Range (F)	-40 F to +150 F
Temperature Range (C)	-40 C to +66 C
Used With	V5055;V5097 Gas Valves
Electrical Ratings	120 Vac
Frequency	60 Hz
Approvals, Underwriters Laboratories Inc.	When used with V5055A-E (3/4 to 4 in.) or V5097A-E (3/4 to 3 in.): Listed, File No. MH1639 Guide No. YIOZ
Approvals, Canadian Standards Association	When used with V5055 and V5097: Certified General listed File No. 158158, Class 3371 for USA and Canada
Contact Ratings	Proof of Closure (Factory Mutual) Switch– 9.8 AFL, 58.8 ALR, 1/2 hp; 4.9 AFL, 29.4 ALR, 1/2 hp
Approvals, Swiss RE	When used with V5055 or V5097: Acceptable
Approvals, Factory Mutual	When used with the V5055D or V5097D: Approved, Report Nos. 20698, 20835, 21172, and 24061
Timing	Opening– 13 sec; Closing– < 1 sec
Internal Auxiliary Switch	No
