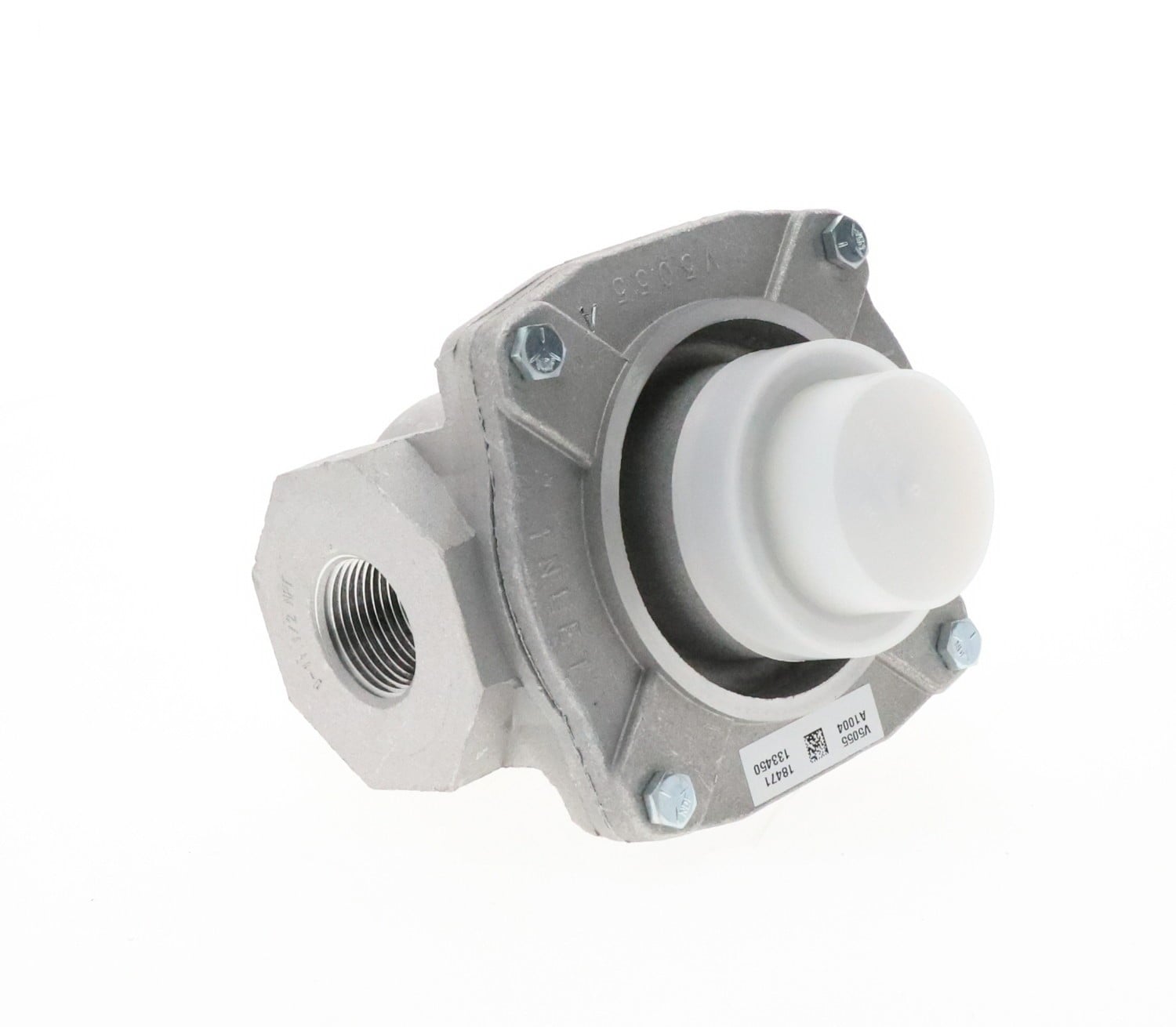

V5055A1004 Honeywell INDUSTRIAL Gas Valve

The Honeywell V5055A1004 1 in. NPT Industrial Gas Valve with On-off safety shut-off

Overview

Safety shutoff valves used with V4055, V4062 and V9055 fluid power actuators to control gas flow to commercial and industrial burners.

Features

• Use with natural or LP gases.
• Mount directly in gas supply line.
• Include 1/4 in. NPT upstream and downstream taps and plug.
• 4 in. models have only flanged connections.
• V5055 normally closed valves are rated for final shutoff service safety shutoff.
• V5055A,C,D,E Valves are for On-Off service.
• V5055B Valve has a characterized guide and in combination with the V4055, V4062, and V9055 Fluid Power Actuators, provides slow-opening, hi-lo-off, and modulating functions respectively.
• V5055C,E,F Valves have a double seal and are used with V4055D,E Actuators to provide proof-of-closure switch and valve seal over-travel interlock.

• V5055D,E,F Valves are for high pressure applications.

Product Specifications

• Includes
  • 1/4 in. -18 NPT upstream tap and plug, 1/4 in. -18 NPT downstream tap and plug
• Used With
  • V9055; V4055; V4062
• Item Type
  • Product
• Approvals, Underwriters Laboratories Inc.
  • When used with V4055A,B,D,E, V4062, V9055: Listed, File No. MH1639 Guide No. YIOZ
• Approvals, Canadian Standards Association
  • When used with V4055, V4062, and V5097: Certified General listed File No. 158158, Class 3371 for USA and Canada
• Operating Temperature Range (F)
  • -40 F to +150 F; When used with V9055– -40 F to +125 F
• Operating Temperature Range (C)
  • -40 C to +66 C; When used with V9055– -40 C to +52 C
• Approvals, Swiss RE
  • When used with V4055A,B,D,E, V4062, V9055: Acceptable
• Approvals, Factory Mutual
  • When used with the V4055A,G: Approved, Report Nos. 20698, 20835, 21172, and 24061
• Connection Type
  • NPT
• Capacity (m³/hr)
  • 2 m3/hr
• Pipe Size (inch)
  • 1 in.
• Pipe Size (DN)
  • DN25
• Capacity (cfh)
  • 960 cfh
• Maximum Operating Differential Pressure
  • With V4055A,D or V4062– 5 psi (340 mbar); With V4055B or E– 15 psi (1 bar)
