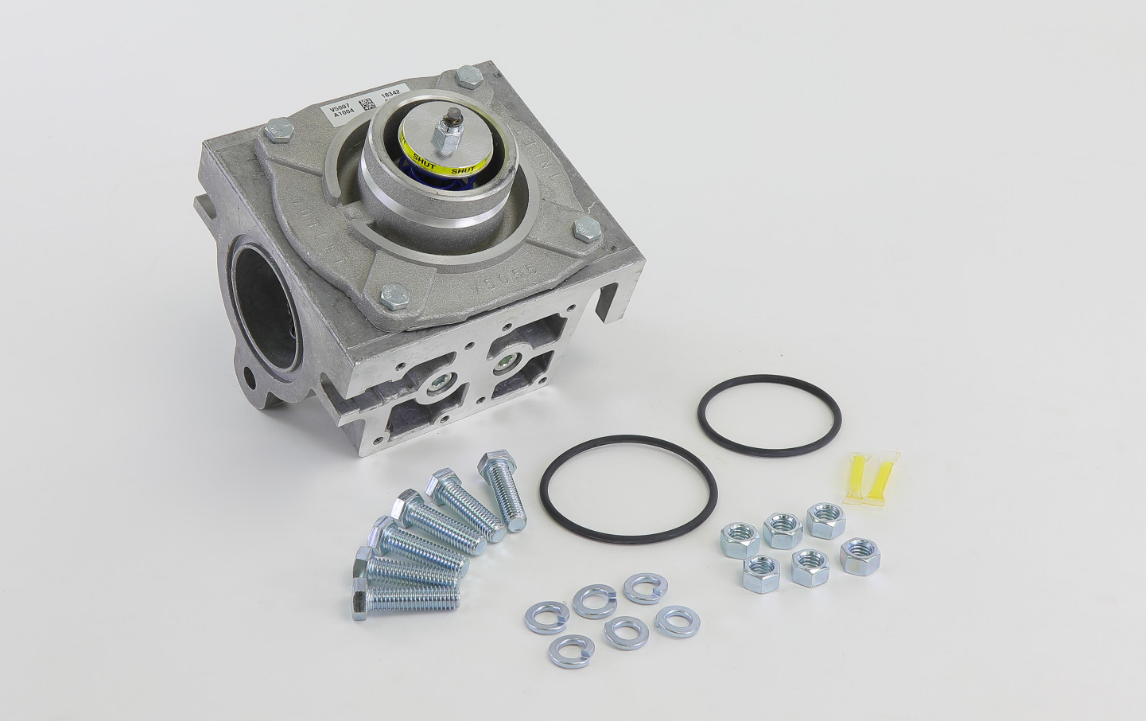

V5097A1004 Honeywell Integrated Gas Valve

Datasheet

Installation Guide

Overview

Safety shutoff valves used with V4055, V4062 and V9055 fluid power actuators to control gas flow to commercial and industrial burners.

Features

• Use with natural or LP gases.
• Mount directly in gas supply line.
• Two Valve body types. Small body type for 3/4 in., 1 in., 1-1/4 in., 1-1/2 in., 2 in. pipes. Large body types for 2 in., 2-1/2 in. and 3 in. pipes.
• Seven pipe adapter sizes from 3/4 in. to 3 in. have NPT or BSP threaded connections.
• Provides three 1/4 in. upstream and two 1/4 in. downstream tap and plug.
• CE version provides an additional downstream tap and plug.
• Yellow SHUT indicator attached to the valve stem provides an indication of the valve closed position.
• V5097A,C,D,E Valves are for on-off service.
• V5097B Valve has a characterized guide and in combination with the V4055, V4062 and V9055 Fluid Power Actuators, provides slow-opening, HI-LO-OFF, and modulating functions, respectively.
• V5097C,E Valves have a double seal and are used with V4055D,E Actuators to provide proof-of-closure switch and valve seal over-travel interlock.
• Actuators to provide proof-of-closure switch and valve seal over-travel interlock.
• V5097D,E Valves are for high pressure applications.
• Two valve body types (small and large) applicable to server pipe size.



Product Specifications

• Includes
  • Three 1/4 in. -18 NPT upstream and two 1/4 in. -18 NPT downstream taps
• Used With
  • V9055; V4055; V4062
• Comments
  • Select Proper Pipe Adapter
• Item Type
  • Product
• Approvals, Underwriters Laboratories Inc.
  • When used with V4055A,B,D,E, V4062, V9055: Listed, File No. MH1639 Guide No. YIOZ
• Approvals, Canadian Standards Association
  • When used with V4055, V4062, and V5097: Certified General listed File No. 158158, Class 3371 for USA and Canada
• Operating Temperature Range (F)
  • -40 F to +150 F; When used with V9055– -40 F to +125 F
• Operating Temperature Range (C)
  • -40 C to +66 C; When used with V9055– -40 C to +52 C
• Approvals, CE
  • CE #E3070 (Gastec)
• Approvals, Swiss RE
  • When used with V4055A,B,D,E, V4062, V9055: Acceptable
• Approvals, Factory Mutual
  • When used with the V4055A,G: Approved, Report Nos. 20698, 20835, 21172, and 24061
• Capacity (m³/hr)
  • 8 to 102.5 m3/hr
• Pipe Size (inch)
  • 3/4 in. or 1 in. or 1 1/4 in. or 2 in.
• Pipe Size (DN)
  • DN20 or DN25 or DN32 or DN50
• Capacity (cfh)
  • 665 cfh to 3620 cfh
• Maximum Operating Differential Pressure
  • With V4055A,D or V4062– 5 psi (340 mbar); With V4055B or E– 15 psi (1 bar)
• Integrated Valve Train Body Size
  • Small body
