V5097A1012 Honeywell Integrated Gas Valve

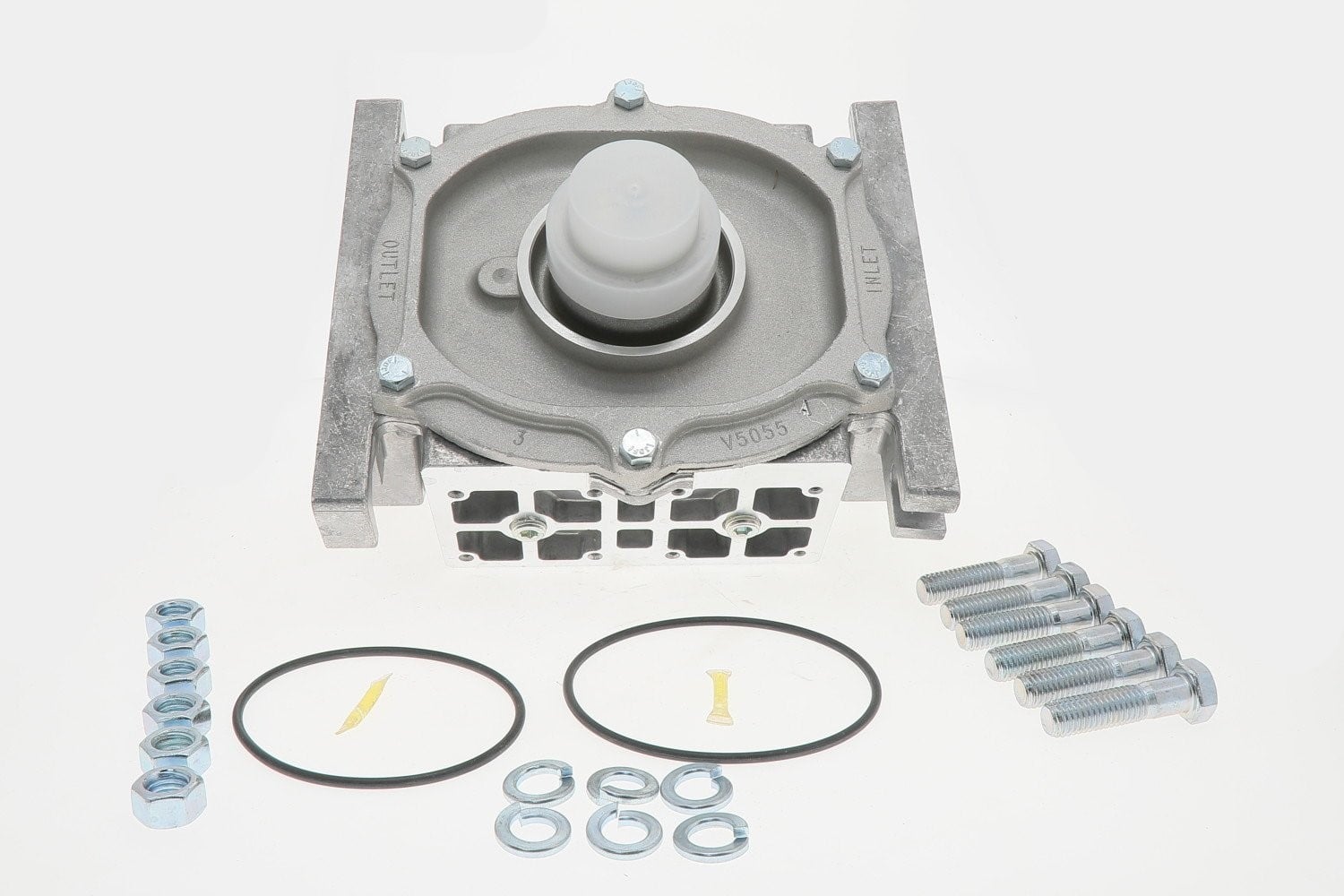

The Honeywell V5097A1012 Large Body Low Pressure Integrated Valve with On-off safety shut-off

Overview

Safety shutoff valves used with V4055, V4062 and V9055 fluid power actuators to control gas flow to commercial and industrial burners.

Features

• Use with natural or LP gases.
• Mount directly in gas supply line.
• Two Valve body types. Small body type for 3/4 in., 1 in., 1-1/4 in., 1-1/2 in., 2 in. pipes. Large body types for 2 in., 2-1/2 in. and 3 in. pipes.
• Seven pipe adapter sizes from 3/4 in. to 3 in. have NPT or BSP threaded connections.
• Provides three 1/4 in. upstream and two 1/4 in. downstream tap and plug.
• CE version provides an additional downstream tap and plug.
• Yellow SHUT indicator attached to the valve stem provides an indication of the valve closed position.
• V5097A,C,D,E Valves are for on-off service.
• V5097B Valve has a characterized guide and in combination with the V4055, V4062 and V9055 Fluid Power Actuators, provides slow-opening, HI-LO-OFF, and modulating functions, respectively.
• V5097C,E Valves have a double seal and are used with V4055D,E Actuators to provide proof-of-closure switch and valve seal over-travel interlock.
• Actuators to provide proof-of-closure switch and valve seal over-travel interlock.
• V5097D,E Valves are for high pressure applications.
• Two valve body types (small and large) applicable to server pipe size.

Product Specifications

• Includes
  • Three 1/4 in. -18 NPT upstream and two 1/4 in. -18 NPT downstream taps
• Used With
  • V9055; V4055; V4062
• Comments
  • Select Proper Pipe Adapter
• Item Type
  • Product
• Approvals, Underwriters Laboratories Inc.
  • When used with V4055A,B,D,E, V4062, V9055: Listed, File No. MH1639 Guide No. YIOZ
• Approvals, Canadian Standards Association
  • When used with V4055, V4062, and V5097: Certified General listed File No. 158158, Class 3371 for USA and Canada
• Operating Temperature Range (F)
  • -40 F to +150 F; When used with V9055– -40 F to +125 F
• Operating Temperature Range (C)
  • -40 C to +66 C; When used with V9055– -40 C to +52 C
• Approvals, CE
  • CE #E3070 (Gastec)
• Approvals, Swiss RE
  • When used with V4055A,B,D,E, V4062, V9055: Acceptable
• Approvals, Factory Mutual
  • When used with the V4055A,G: Approved, Report Nos. 20698, 20835, 21172, and 24061
• Capacity (m³/hr)
  • 5 to 148.0 m3/hr
• Pipe Size (inch)
  • 2 in. or 2 1/2 in. or 3 in.
• Pipe Size (DN)
  • DN50 or DN65 or DN80
• Capacity (cfh)
  • 3620 cfh to 5230 cfh
• Maximum Operating Differential Pressure
  • With V4055A,D or V4062– 5 psi (340 mbar); With V4055B or E– 15 psi (1 bar)
• Integrated Valve Train Body Size
  • Large body
