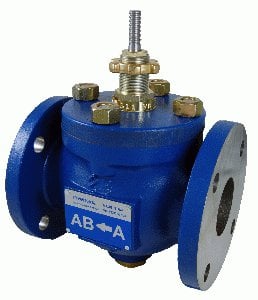

5″ 2-Way, Balanced Plug, N.C., 125 lb, G.F.
Valve Body (VB-8223-0-5-15):
- Body Size: 5 in
- Configuration: 2-Way
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up A closed
- Material Trim: Brass
- Flow Coefficient: 240 cv
- Control Media: Glycol 25 to 50%, Steam, Water
- Product Line: Schneider Electric
- Product Range: Balanced Plug Technology
- Product Series: VB-8200
Product Specifications
| Body Size | 125 mm (5 in) |
| By Schneider | Yes |
| California Residents |  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Configuration | 2-Way |
| Connection Type | Flanged |
| Flow Characteristic | Modified equal percentage |
| Flow Coefficient | 207.57 kvs |
| 240.00 cv | |
| Material Body | Cast iron |
| Material Packing | Spring-loaded PTFE/EPDM |
| Material Plug | Brass forged |
| Material Seat Port A | Brass |
| Material Stem | 316 Stainless steel |
| Material Trim | Brass |
| Media Compatibility | Glycol 25% |
| Glycol 30% | |
| Glycol 50% | |
| Steam | |
| Water | |
| Pipe Size | 5 in |
| Pressure Allowable Static | Class 125 with 200 PSIG up to 150 F decreasing to 169 PSIG at 281 F |
| Pressure Class | 125 ANSI |
| Pressure Saturated Steam Maximum Inlet | 242 kPa |
| 35 psi | |
| Product Range | Balanced Plug Technology |
| Product Series | VB-8200 |
| Rangeability | Greater than 100:1 |
| Seat Leakage Port A | ANSI IV (0.01%) |
| Stem Flow Action | Stem up A closed |
| Stem Movement | Linear |
| Stroke Distance | 1 in |
| Temperature Range Fluid | -7 to 138 C (20 to 281 F) |
| Temperature Range Saturated Steam | -7 to 138 C (20 to 281 F) |
| Type | Globe |
| Weight | 143 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| Part Number | VB-8223-0-5-15 |
| Manufacturer |
