H706 Veris Current Switch Veris

Datasheet

Installation Guide

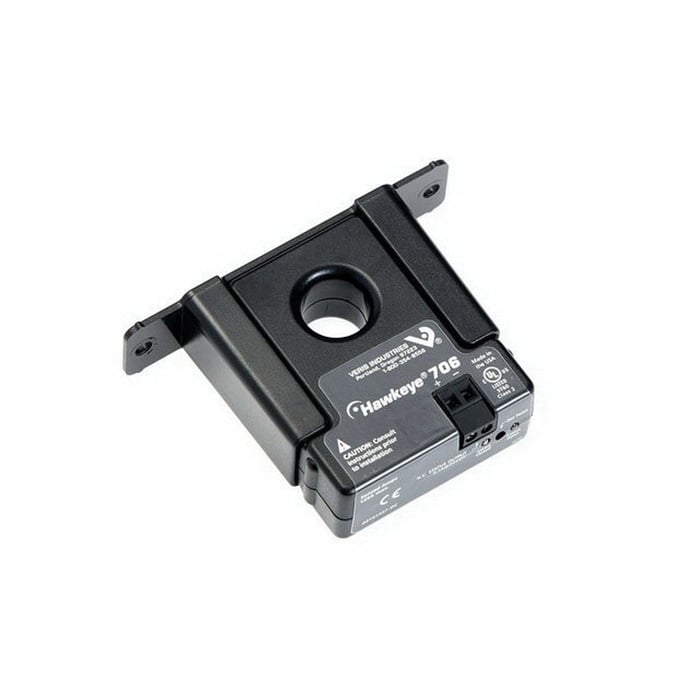

The Veris H706 Veris Current Switch Solid Core Current Switch,Adj,Calibration LED’s,Range:1-135AAC,Output:N.C.,

Specifications:

Application	:	Building Automation Systems
Current Measurement Range	:	1 – 135 A
Current Sensor type	:	Current Switch, AC
Electrical Wiring Size	:	24 – 14 AWG (0.2 – 2.1 mm²)
Measurement Type	:	AC Current
Model	:	H706
Monitored Frequency Range	:	50 – 60 Hz
Monitored Wire Size	:	0.7″ (18 mm)
Mounting	:	Solid Core
Operating Humidity	:	10 – 90% RH, non-condensing
Operating Temperature	:	5 – 140 °F (-15 – 60 °C)
Output Specifications	:	N.C. 0.1A @ 30 VDC
Outputs	:	Switch output
Product Certification	:	UL | CE
Product Type	:	Sensor
Range	:	HX06 Series
Relay Coil Voltage	:	None
Relay Contact Ratings	:	None
Relay Poles/Throw	:	None
Setpoint	:	Adjustable
Warranty	:	5 years



Features:

Hawkeye x06 series solid-core current switches provide accurate, reliable and maintenance-free fan and pump status indication where an NC output is needed.

• Adjustable trip point – versatility with four available amperage ranges
• No tubing necessary – easier to install than differential pressure switches
• 100% solid-state no moving parts to fail
• Output status LEDs for fast set up
• Easy placement – adjustable mounting bracket on the solid-core housing
• Self-gripping iris on split-core housings for easy installation
