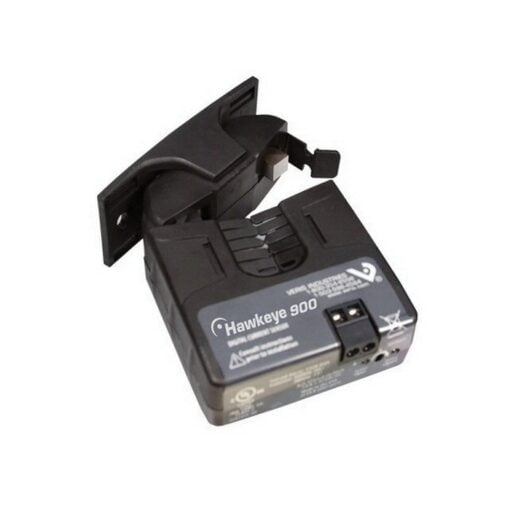

The Veris H900 Veris Current Monitor Split Core, Fixed, Range: 1.5-200AAC, Output: N.O., 1.0A@30V; Hawkeye 1.5 to 200 A Fixed Trip Point Current Switch, Split-Core
SPECIFICATIONS
Mounting | : | Split Core |
Current Measurement Range | : | 1.5 – 200 A |
Measurement Type | : | AC Current |
Output Specifications | : | N.O. 1 A @ 30 VAC/DC |
Outputs | : | Switch output |
Relay Coil Voltage | : | None |
Relay Contact Ratings | : | None |
Relay Poles/Throw | : | None |
Setpoint | : | Fixed |
Application | : | Building Automation Systems |
Current Sensor type | : | Current Switch, AC |
Electrical Wiring Size | : | 24 – 14 AWG (0.2 – 2.1 mm²) |
Model | : | H900 |
Monitored Frequency Range | : | 50 – 60 Hz |
Monitored Wire Size | : | 0.8″ (21 mm) |
Operating Humidity | : | 10 – 90% RH, non-condensing |
Operating Temperature | : | 5 – 140 °F (-15 – 60 °C) |
Product Type | : | Sensor |
Range | : | HX00 Series |
Product Certification | : | UL | CE |
Warranty | : | 5 years |
FEATURES
Hawkeye 900 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps and other fixed loads where belt loss is not a concern.
- More reliable for status than relays across auxiliary contacts
- Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
- Low setpoint – minimum trip point as low as 1.5 A, avoids the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5 hp
- Removable mounting bracket provides installation flexibility
- Quick installation – split-core for fast retrofit installation
- Flexibility – bracket on H900 can be installed in three different configurations
- Induced from monitored current sensor power
