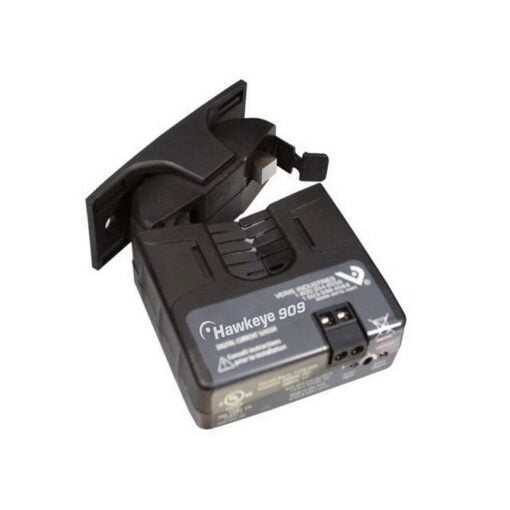

The Veris H909 Hawkeye 2.5 to 135 A Adjustable Trip Point High Voltage Output Current Switch with LED Status, Split-Core
SPECIFICATIONS
| Application | : | Building Automation Systems |
| Current Measurement Range | : | 1 – 135 A |
| Current Sensor type | : | Current Switch, AC |
| Electrical Wiring Size | : | 24 – 14 AWG (0.2 – 2.1 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H909 |
| Monitored Frequency Range | : | 50 – 60 Hz |
| Monitored Wire Size | : | 0.8″ (21 mm) |
| Mounting | : | Split Core |
| Operating Humidity | : | 10 – 90% RH, non-condensing |
| Operating Temperature | : | 5 – 140 °F (-15 – 60 °C) |
| Output Specifications | : | N.O. 0.2A @ 120 VAC/DC |
| Outputs | : | Switch output |
| Product Certification | : | UL | CE |
| Product Type | : | Sensor |
| Range | : | HX09 Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Setpoint | : | Adjustable |
| Warranty | : | 5 years |
FEATURES
Hawkeye x09 series are high performance current switches, ideal for line voltage loads. The devices are powered by the current being monitored. They are ideal for monitoring performance on unit vents, exhaust fans, recirculation pumps and other fixed loads.
- Versatility – removable mounting bracket optimizes field versatility
- Adjustable trip point – precise current trip point setting
- Status LEDs – for easy setup and local indication
- Flexibility – bracket on H909 can be installed in three different configurations
- Induced from monitored conductor sensor power
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 5 × 2 in |
| Manufacturer |
