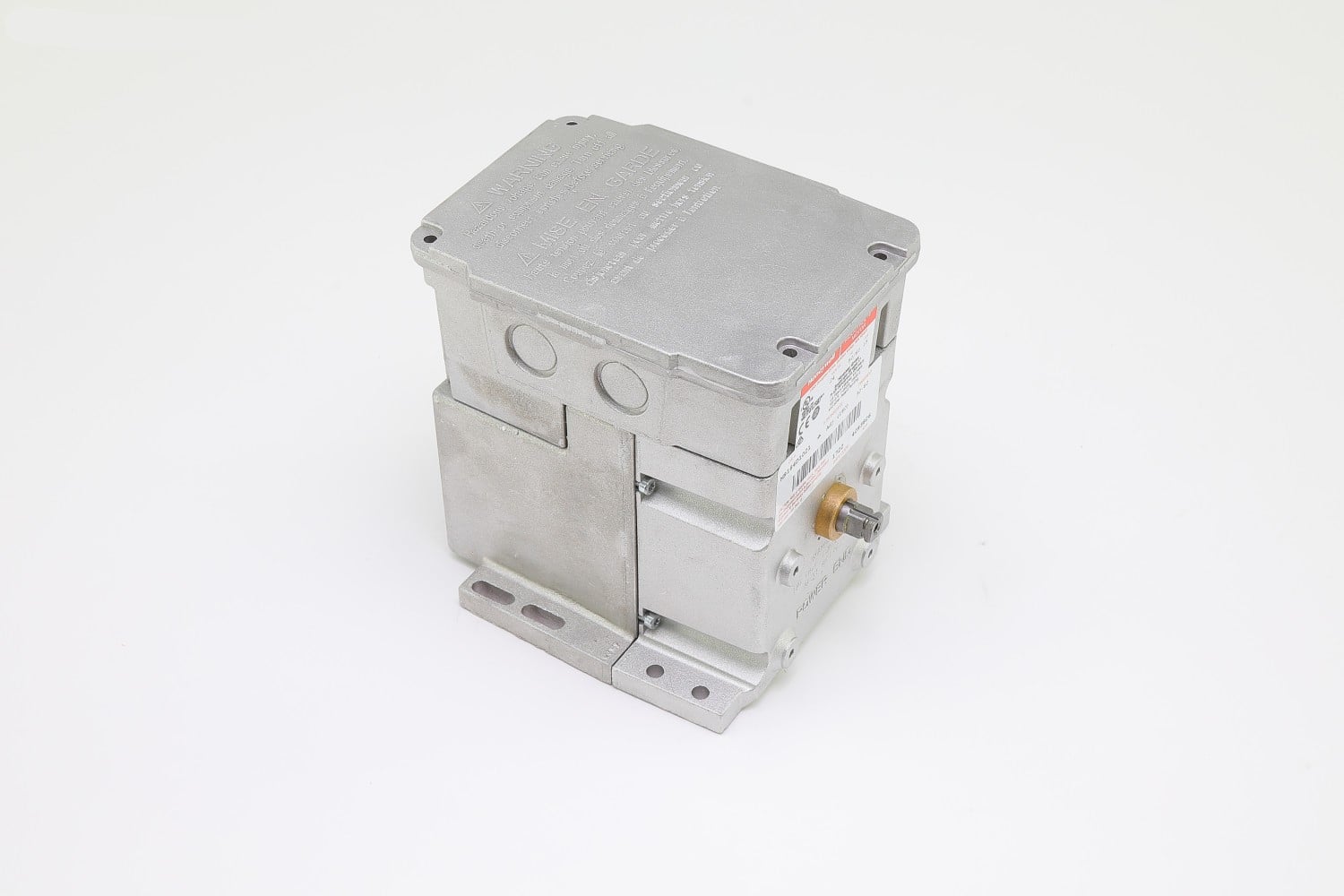

M9184D1021 Honeywell

The Honeywell M9184D1021 Modutrol motor non-spring return, replaces M954A1035 Proportional Modutrol IV Motor, 24Vac, 135 Ohm Control Signal, Non Spring Return, 150 Lb-In Torque, 30-60 Second Nominal Timing, 90-160 Degree Stroke, 160 Degree Factory Stroke Setting, Quick Connect Terminals, Foot Mounted, Dual Ended Square Shaft, .375″ Shaft Dimension, Integral Junction Box Provides Nema 3 Weather Protection

Tech Sheet

Product Specifications

• Application: Electric
• Dimensions (in.): 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
• Weight (lb): 6.5 lb
• Item Type: Product
• Mounting: Foot-mounted
• Frequency: 50 Hz; 60 Hz
• Electrical Connections: Quick-connect terminals
• Supply Voltage: 24V
• Power Consumption: Driving– 15 VA
• Ambient Temperature Range (F): -40 F to +150 F
• Internal Auxiliary Switch: 0
• Auxiliary Switch Ratings: AFL – 120 Vac– 7.2A; ALR- 120 Vac– 43.2A; AFL – 240 Vac– 3.6A; ALR- 240 Vac– 21.6A
• Stroke: Adjustable; 90 to 160 degrees, Symmetrical
• Shaft Dimensions (in.): 0.375 in. Square
• Control Signal: Proportional, 135 ohm
• Fail Safe Mode: Non-Spring Return
• Torque Rating (lb-in.): 150 lb-in.
• Torque Rating (Nm): 17 Nm
• External Auxiliary Switches Available: Yes
• Shaft Rotation (upon control signal increase): Clockwise (as viewed from power end) (normally closed)
• Factory Stroke Setting: 160 degrees
• Timing, Nominal: 30-60 sec
• Feedback: No
• Shaft Dimensions (mm): 10 mm Square
• Motor shafts: Dual-ended shaft
• Deadweight Load on Shaft: Either End– 200 lbs.; Combined on both Shafts– 300 lbs.
• Internal Transformer: None
