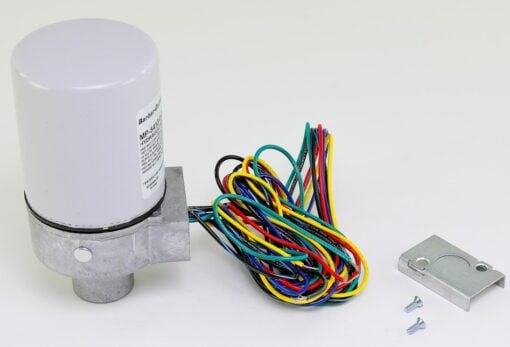

Invensys MP-5413 Proportional Actuator, SR, 24V, 50/60 Hz ***TAC EXPRESS***
The MP-5400 Series Actuators are for electronic proportional control of dampers, valves, or program switches which require the return to normal position upon power interruption. This series is compatible with 2 to 15 Vdc input signals from TAC System 8000, TAC NETWORK 8000, and TAC DMS DDC controllers.
Actuator: (MP-5413):
- Actuator Type: Electric/Hydraulic
- Control Signal: Proportional
- Control Signal Range: 6 to 9 VDC
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC
- Leads and Connections: 4 ft Appliance
- Torque: 15 in-lb
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Range: Electronic Hydraulic
- Product Series: MP-5400
- Actuator Use: Dampers, Globe Valves
Actuator Housing Material | Aluminum die cast lower housing and painted steel upper housing |
Actuator Type | Electric/Hydraulic |
Actuator Use | Dampers |
Globe Valves | |
Auxiliary Switch | 2 |
By Schneider | Yes |
California Residents | WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Conduit Connection | 1/2 in |
Control Signal | Proportional/Modulating |
Control Signal Range | 6 to 9 VDC |
Humidity | 5 to 95% non-condensing |
Insulation Class | Class I |
IP Protection Rating | IP10 |
Lead Length | 4 ft |
Leads and Connections | Appliance |
Loss of Power Type | Spring Return |
Mechanical Movement | Linear |
Motor Type | Oil immersed |
Network Protocol | NETWORK 8000 |
Override | 5/32 Allen wrench |
Position Indicator | Green push stem with color markers |
Power Consumption Running VA | 18.00 VA |
Power Input Frequency | 50 Hz |
60 Hz | |
Power Input Voltage | 24 VAC |
Power Input Voltage AC Tolerance | Plus 10% or minus 15% |
Power Output Amps | 0.03 Amp |
Power Output Voltage | 20 VDC |
Product Range | Electronic Hydraulic |
Product Series | MP-5400 |
Stroke Auto Calibration | No |
Temperature Ambient Operating Range | -28.8 to 39.4 C (-20 to 103 F) |
Temperature Shipping and Storage Range | -40 to 60 C (-40 to 140 F) |
Torque | 1.69 Nm |
14.96 in-lb |
