Overview

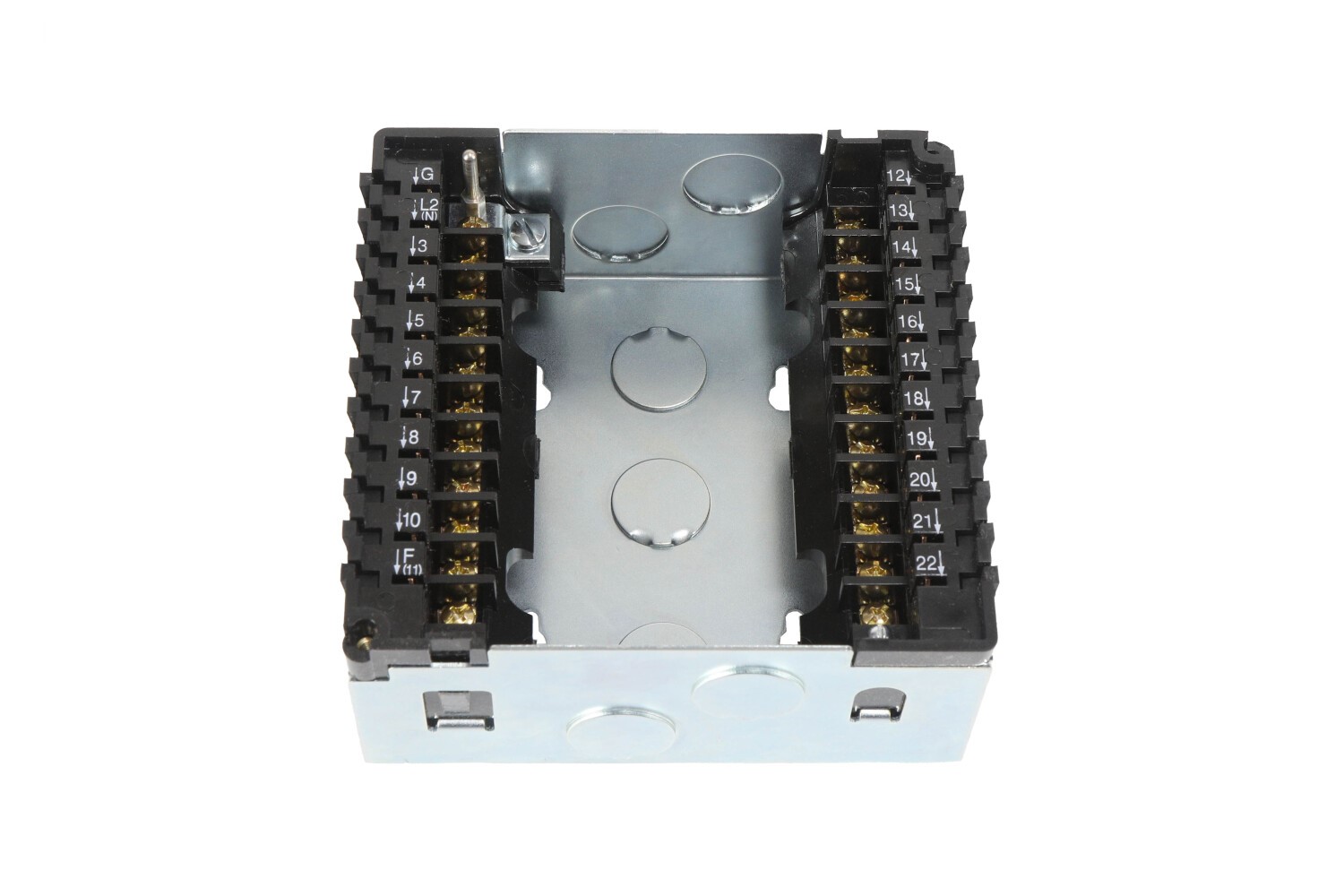

Burner, panel or wall mount subbases for 7800 SERIES relay modules and S7830A Expanded Annunciator.
Features
- Makes electrical connections for 7800 SERIES relay modules or S7830A Expanded Annunciator through bifurcated contacts.
- Provides terminals for field wiring.
- Twenty-two terminals.
Product Specifications
| Application | Wiring Subbase |
| Dimensions (in.) | 4 31/32 in. wide x 4 31/32 in. high x 2 7/32 in deep |
| Dimensions (mm) | 126 mm wide x 126 mm high x 56 mm deep |
| Used With | RM/EC7800 Flame Relay |
| Weight (lb) | 7 oz |
| Weight (kg) | 0.53 kg |
| Comments | Wall mount |
| Item Type | Product |
| Approvals, Underwriters Laboratories Inc. | Component Recognized, File No. MP268; Guide No. MCCZ2. |
| Approvals, Canadian Standards Association | Certified, File No. LR95329-3. |
| Shipping and Storage Temperature Range (F) | -40 F to +140 F |
| Shipping and Storage Temperature Range (C) | -40 C to +60 C |
| Vibration | 0.5 G environment |
| European Directives | EN60730 |
| Enclosure Rating | NEMA 1 |
| Weight (oz) | 19 |
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 6 × 3 in |
| Manufacturer |
