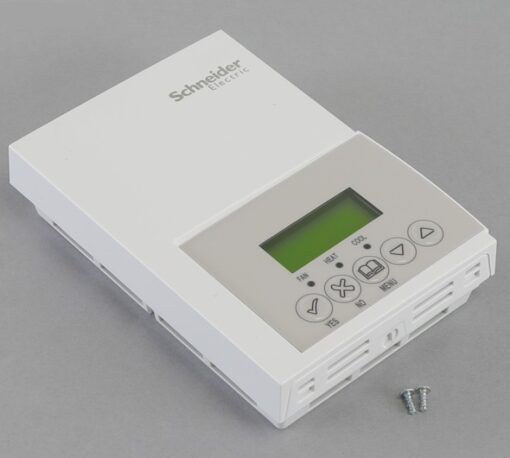

RTU MODHEAT SA 1H/2C SCH
Roof Top Modulating Heat Controller: Stand Alone, 1H/2C, Local scheduling
Product Specifications
| [Us] rated supply voltage | 10…30 V AC 50/60 Hz |
| Application | Low voltage rooftop |
| Modulating heat | |
| Staging equipment (RTU/HP) | |
| AWG Gauge | AWG 22…AWG 18 |
| Brand | Schneider Electric |
| By Schneider | Yes |
| Communication Port Protocol | Stand-Alone (Network Ready) |
| Connections – Terminals | Screw terminal |
| Contact Operation | 5 standard push-button |
| Depth | 1.18 in (29.97 mm) |
| Device Presentation | Without cover |
| Device Short Name | SE7600F |
| Directives | 89/336/EEC – electromagnetic compatibility |
| Economizer | No |
| End of commercialization annoucement date | 07/01/2021 |
| End of commercialization date | 12/31/2021 |
| Final Result for Flywheel performance tracking | Edge control non-recurring |
| Height | 4.92 in (124.97 mm) |
| Humidity Calibration Certificate | 1 pt |
| Humidity Control | No |
| Humidity Setting Range | Dehumidification 30…95 % |
| Information Displayed | Temperature – 40…122 °F |
| Input Type | Dry contact 2 |
| Insulation Class | Class II |
| internal resistance | >= 2 kOhm |
| Manufacturer | Schneider Electric |
| Market Segment | Residential |
| Measurement Accuracy | Temperature +/- 0.9 °F, at 70 °F typically calibrated) |
| Net Weight | 0.75 lb(US) (0.34 kg) |
| Network Frequency | 50 Hz |
| 60 Hz | |
| Output Current | <= 5 mA analog output |
| 1 A digital output maximum) | |
| 3 A digital output inrush) | |
| Output Type | 2 xuniversal |
| Output Voltage | 0…10 V DC analog output |
| 30 V AC digital output | |
| PIR Cover | No |
| Product Alert | We are currently experiencing delays on this product. As we work to return it to normal, inventory and lead times may not be accurate. Please use the chat feature to contact CCC for additional details |
| Product Certifications | CE |
| C-tick AS/NZS CISPR 22 | |
| FCC CFR 47 part 15 class A | |
| UL listed file E27734 CCN XPAX | |
| UL listed file E27734 CCN XPAX7 | |
| Product Name | SE7000 Series |
| Product Or Component Type | Room controller |
| Product Specific Application | 1-stage heating |
| 2-stage cooling | |
| Range | EcoStruxure Building Expert |
| Range Compatibility | communication card |
| relay | |
| sensor | |
| sensor coverplate | |
| temperature sensor | |
| Rated Operational Power In Va | 2 VA |
| Regulation Loop | Cooling adjustable P regulator 2 °F (-17 °C) factory setting) |
| Heating adjustable P regulator 2 °F (-17 °C) factory setting) | |
| Relative Humidity | 0…95 % RH, non-condensing |
| Scheduling | Yes |
| Sensor Type | Temperature: 10 kOhm T2 NTC thermistor |
| Standards | CSA C22.2 No 24 |
| FCC part 15 subpart B | |
| ICES-003 | |
| UL 873 | |
| Storage Relative Humidity | RH, non-condensing 0…95 % |
| Sustainable offer status | Green Premium product |
| Temperature Ambient Operating Range | 32…122 °F (-0…50 °C) |
| Temperature Setting Range | 0.9 °F (-17 °C) per step |
| 40…90 °F (4…32 °C) heating | |
| 54…100 °F (12…38 °C) cooling | |
| Temperature Shipping and Storage Range | -22…122 °F (-30…50 °C) |
| Width | 3.42 in (86.87 mm) |
Documents
| Application guide | SE7000 Series Application guide | |||
| Comparison guide | Product Comparison Guide SE8000 and SE7000 Series Room Controllers | |||
| Data sheet | Room Controller SE7600F Rooftop Unit with Modulating Heat Controller | |||
| Installation guide | SE7600F Series Installation Guide for RTU with Modulating Heat | |||
| Quick reference guide | SE7000 Quick Reference Guide |
| Weight | 2 lbs |
|---|---|
| Dimensions | 7 × 5 × 3 in |
