RTU HP IAQ BN RH WHT WHT

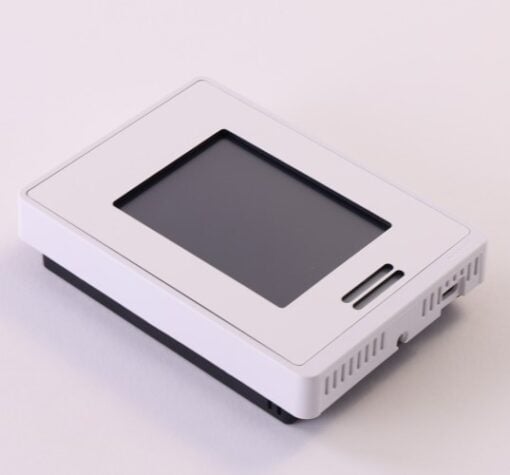

Roof Top Unit, Heat Pump & Indoor Air Quality Ctrl: BACnet MS/TP, RH sensor & control, White Case/Fascia
Product Alert: Must purchase communication module (VCM8000V5045P) separately for Zigbee Pro
Product Specifications
| [Us] rated supply voltage | 24 V AC 50/60 Hz +/- 15 % |
| Application | Staging equipment (RTU/HP) |
| AWG Gauge | AWG 22…AWG 18 |
| Brand | Schneider Electric |
| By Schneider | Yes |
| California proposition 65 |  WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Color Casing | White |
| Communication Port Protocol | BACnet MS/TP |
| Modbus RTU | |
| Zigbee Pro | |
| Depth | 0.98 in (25 mm) |
| Device Short Name | SE8600 |
| Directives | 2014/30/EU – electromagnetic compatibility |
| 2014/35/EU – low voltage directive | |
| 2014/53/EU – radio equipment directive | |
| Economizer | No |
| Final Result for Flywheel performance tracking | Edge control non-recurring |
| Function Available | Available with CO2/RH/T |
| Brightness sensor | |
| Changes can be made directly over display | |
| Code lock function | |
| Easily configurable | |
| Fan control | |
| Firmware update by USB | |
| HVAC control | |
| Height | 4.72 in (120 mm) |
| Humidity Calibration Certificate | 1 pt |
| Humidity Control | Yes |
| Humidity Measurement Drift | Less Than 1 % Yearly |
| Humidity Setting Range | 30…95 % |
| Information Displayed | Temperature – 40…122 °F |
| Input Type | Analog 5 |
| Dry contact 2 | |
| Input Voltage | 0…10 V |
| Manufacturer | Schneider Electric |
| Market Segment | Buildings |
| Healthcare | |
| Lodging/Hotel | |
| Non-critical buildings | |
| Office | |
| Residential | |
| School | |
| Small commercial | |
| Measurement Accuracy | Humidity +/- 10 %, 10…20 % non-condensing) |
| Humidity +/- 10 %, 80…90 % non-condensing) | |
| Humidity +/- 5 %, 20…80 % RH non-condensing) | |
| Temperature +/- 0.5 °C, | |
| Net Weight | 11.99 oz (340 g) |
| Network Frequency | 50 Hz |
| 60 Hz | |
| Output Current | 0.3 A universal output |
| 1 A relay output | |
| 1.5 A universal output inrush) | |
| 3 A relay output inrush) | |
| Output Type | 4 xuniversal |
| 5 xrelay output | |
| Output Voltage | 0…10 V AC/DC voltage output |
| 24 V AC/DC relay output | |
| PIR Cover | No |
| Product Alert | We are currently experiencing delays on this product. As we work to return it to normal, inventory and lead times may not be accurate. Please use the chat feature to contact CCC for additional details |
| Product Name | SE8000 Series |
| Product Or Component Type | Roof top unit |
| Range | EcoStruxure Building Expert |
| Relative Humidity | 0…75 % |
| Scheduling | Yes |
| Sensor Type | Humidity: bulk polymer |
| Humidity: space RH sensor | |
| Temperature: 10 kOhm T2 NTC thermistor | |
| Standards | EN/IEC 60730-1 |
| ETSI EN 300 328 | |
| ETSI EN 301 489-1:v1.9.2 | |
| ETSI EN 301 489-17:v2.2.1, 2012 | |
| FCC part 15 subpart B | |
| FCC part 15 subpart C | |
| ICES-003 | |
| UL 60730-2-9 | |
| Surface Finish | Matte |
| Surface Treatment | Untreated |
| Temperature Ambient Operating Range | 32…122 °F (0…50 °C) |
| Temperature Resolution | 0.1 °C |
| Temperature Setting Range | 40…90 °F (4.5…32 °C) heating |
| 54…100 °F (12…37.5 °C) cooling | |
| Temperature Shipping and Storage Range | -22…122 °F (-30…50 °C) |
| UNSPSC Classification v19 | 39121521 |
| UNSPSC Classification v23 | 39121521 |
| Width | 3.39 in (86 mm) |
Documents
| Application guide | Rooftop Unit, Heat Pump and Indoor Air Quality Application Guide SE8600 Series Room Controllers | |||
| Comparison guide | Product Comparison Guide SE8000 and SE7000 Series Room Controllers | |||
| Data sheet | Room Controller SE8600 Rooftop Unit, Heat Pump, and Indoor Air Quality Controller | |||
| Installation instructions | SE8600 Series Installation Guide Rooftop Unit, Heat Pump and Indoor Air Quality Controller | |||
| Integration guide | VVT Zoning Application for Variable Volume and Temperature Control | |||
| Quick reference guide | SE8000 Quick Reference Guide | |||
| User manual | SE8600 Series User Interface Guide Rooftop Unit, Heat Pump and Indoor Air Quality Controller |
| Weight | 2 lbs |
|---|---|
| Dimensions | 7 × 5 × 3 in |
