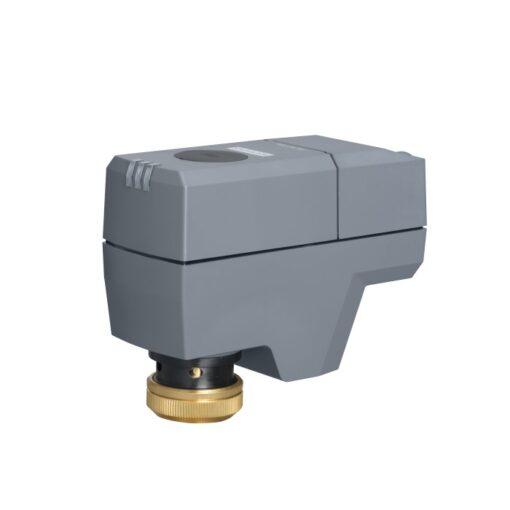

Powermite MT Series actuator, 24 Vac/dc, 0 to 10 Vdc controld signal, fail in place. Works with MT Series valves with 7/32-inch (5.5mm) stroke. UL listed for plenum installations, manual override with LEDv visual position indication. Provides 65 lb. (300 N) nominal force.
Technical Specifications
| Actuator Type | Electronic |
| Actuation Style | Linear |
| Fail Safe | No |
| Spring return function | Non-spring return functionality |
| Control Signal | 0…10 Vdc |
| Positioning time | 27.5 s |
| Position feedback | Yes |
| Power consumption | 3.5 VA |
| Ambient temperature, operation | 5…50 °C |
| Ambient humidity, operation | 90 % r.h. |
| Supply Voltage | 24 VAC/DC |
| Dimensions (W x H x D) | 5.2 x 3.8 x 1.9 in |
| Degree of protection | NEMA2 |
| Weight | 2 lbs |
|---|---|
| Dimensions | 11 × 7 × 3 in |
| Manufacturer | |
| Part Number | S55155-A110 |
