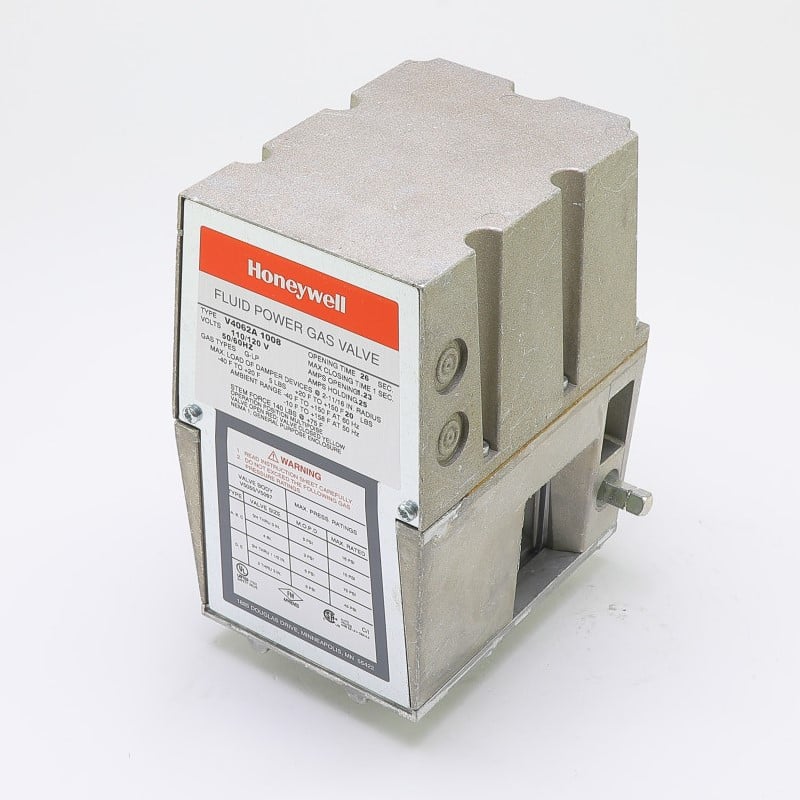

High-Low-Off Actuators to pair with V5055 or V5097 Series gas valves
Use with V5055 or V5097 Gas Valves to control gas supply for commercial and industrial burners. Valve opens to low fire position when power is applied; valve opens all the way on demand.
• Provide final safety shutoff service when used with V5055 or V5097 gas valve
• One-second maximum closing time
• Continuously displays the valve position with a red indicator when open and a yellow indicator when closed
• Mount in any position directly to valve bonnet with three setscrews
• Provide final safety shutoff service when used with V5055 or V5097 Gas Valves
• Electrical Ratings: 120 Vac
• Frequency: 60 Hz Maximum
• Safe Operating Pressure (psi): 5 psi
• Maximum Safe Operating Pressure (kPa): 34 kPa
• Temperature Range: -40°F to +150°F (-40°C to +66°C)
• Used With: V5034; V5055; V5097
• Approvals, CSA: When used with V5055 and V5097: Certified General listed File No. 158158, Class 3371 for USA and Canada
• Approvals, Underwriters Laboratories Inc.: When used with V5055A-E (3/4 to 4 in.) or V5097A-C (3/4 to 3 in.): Listed, File No. MH1639 Guide No. YIOZ
• Approvals, Swiss RE: When used with V5055 or V5097: Acceptable
