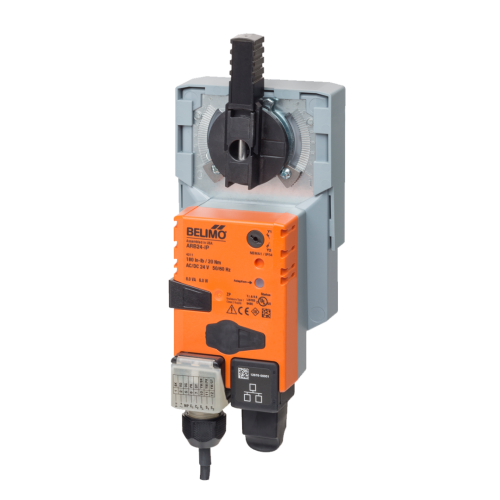

ARB24-IP Belimo Actuator

Datasheet

The actuator is controlled via the Cloud, BACnet IP or Modbus TCP and drives to the position defined by the control signal. Various data points can be written and read via the same interfaces.

Hybrid mode:
The actuator receives its analog control signal from the higher level controller and drives to the position defined. Using the Cloud, BACnet IP or Modbus TCP, various data points can be read and with the exception of the control signal written

Specifications

• Actuator Type
  • Non fail-safe
• Angle of Rotation
  • 90
• Control Type
  • Communicative
• Degree of Protection
  • IP54, NEMA 1, UL Enclosure Type 1
• Electrical Connection
  • cable
• Manual Override
  • External push button
• Power Consumption (Holding)
  • 3 W
• Power Consumption (Running)
  • 6 W
• Running Time (Motor)
  • Default 150 s, variable 70…220 s
• Running Time range (Motor)
  • ..220 s
• Safety Function
  • NO
• Torque
  • 180 in-lb [20 Nm]
• Voltage AC/DC
  • AC/DC 24 V
