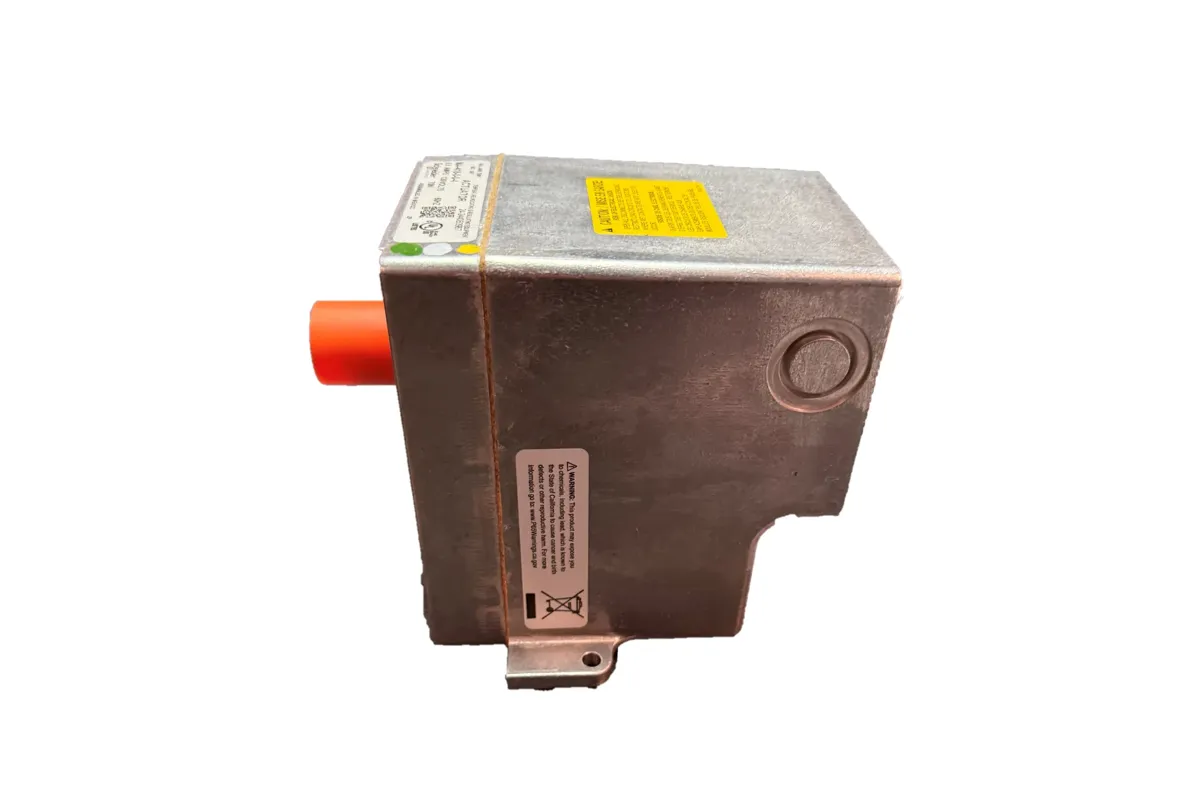

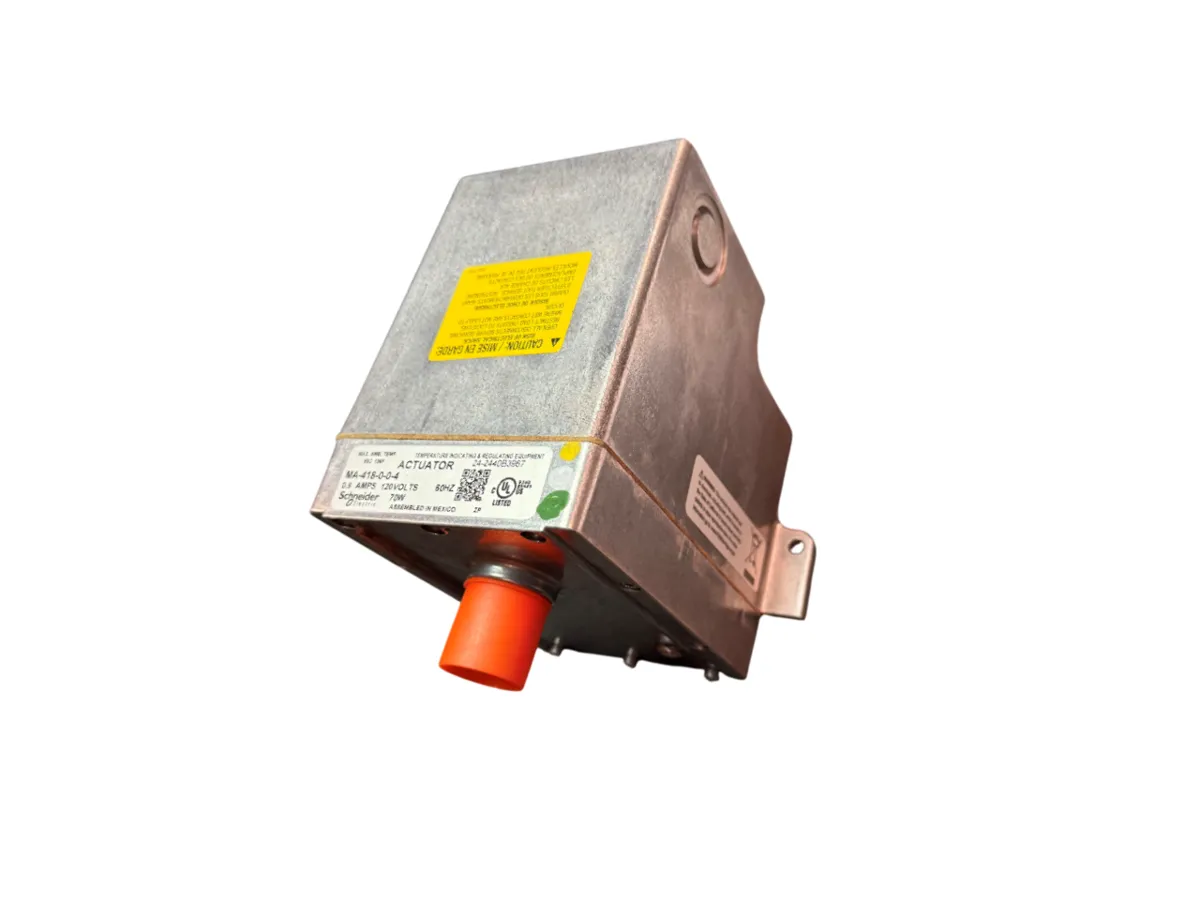

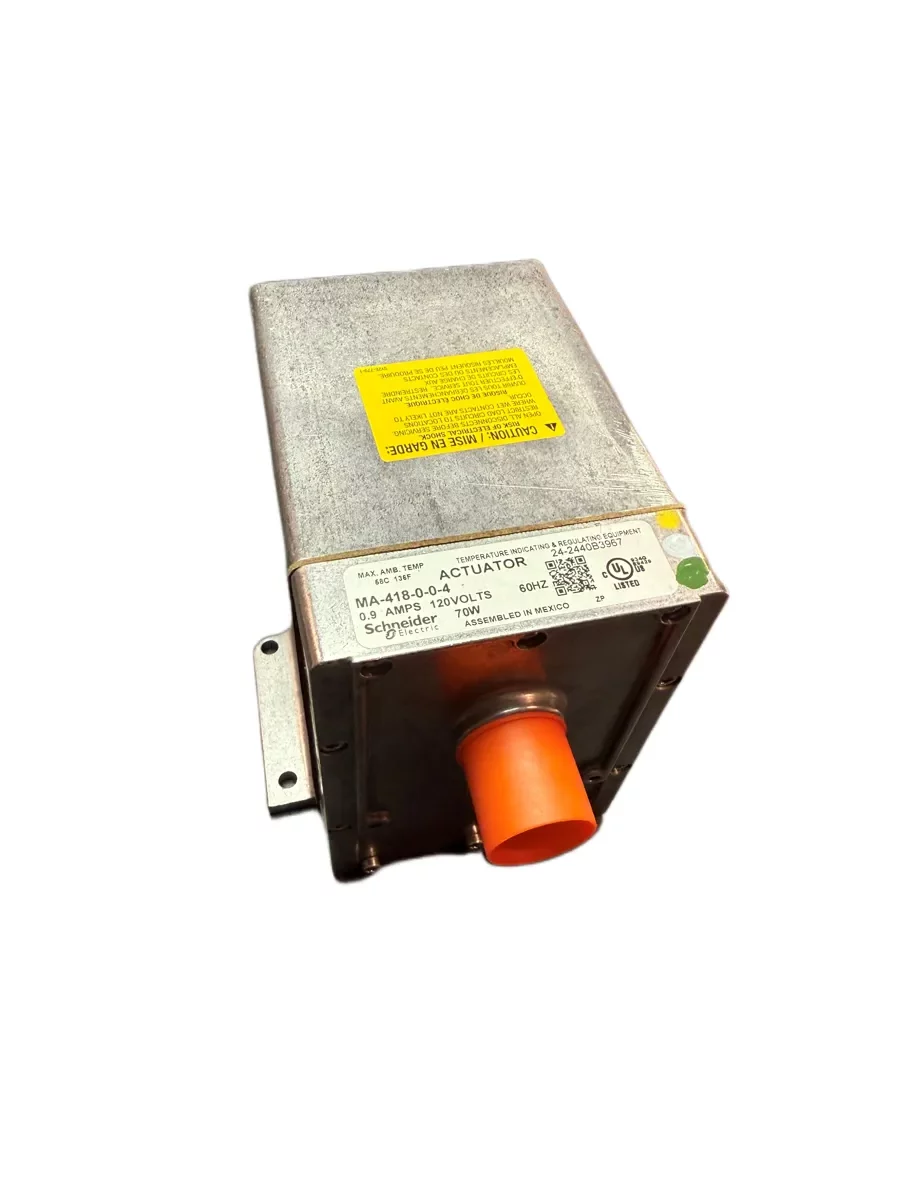

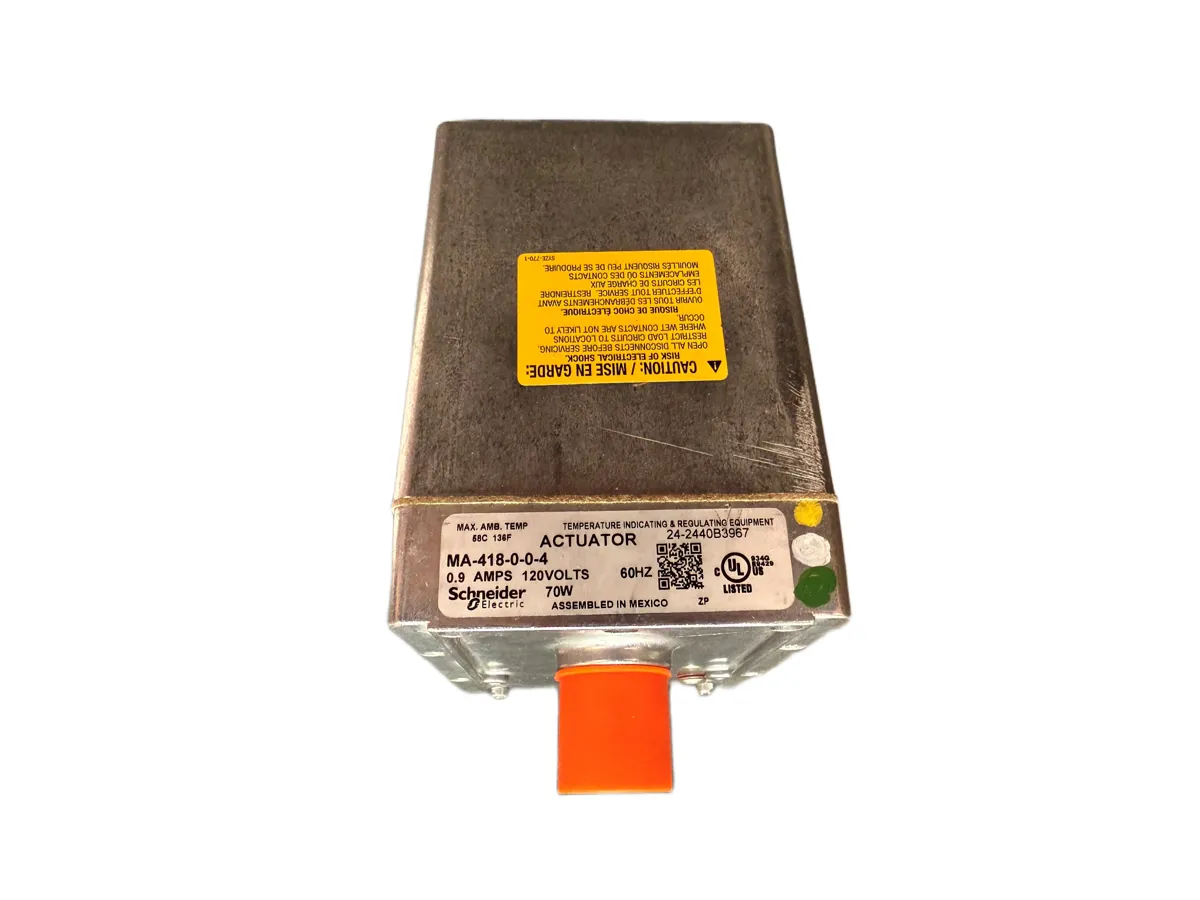

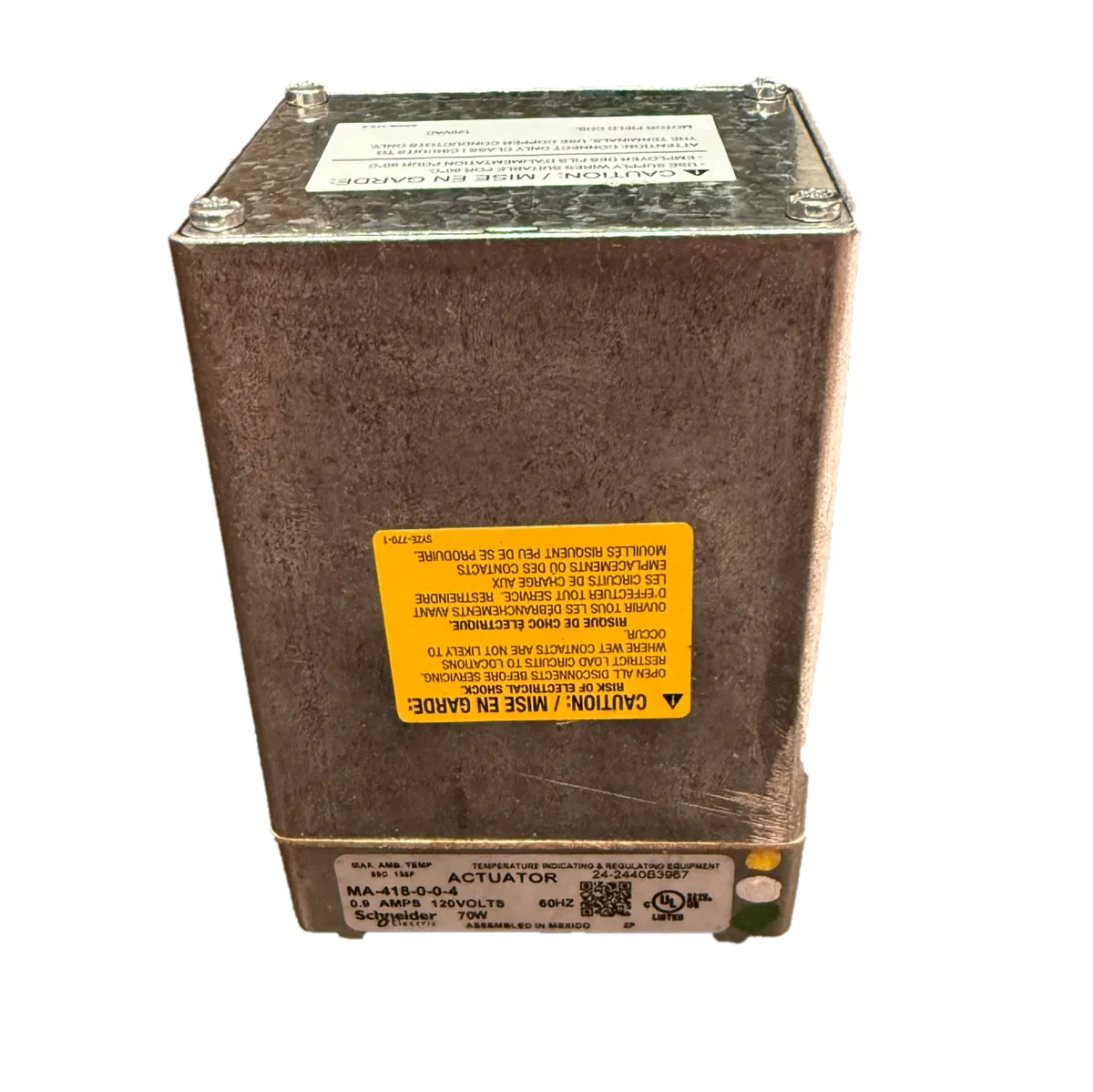

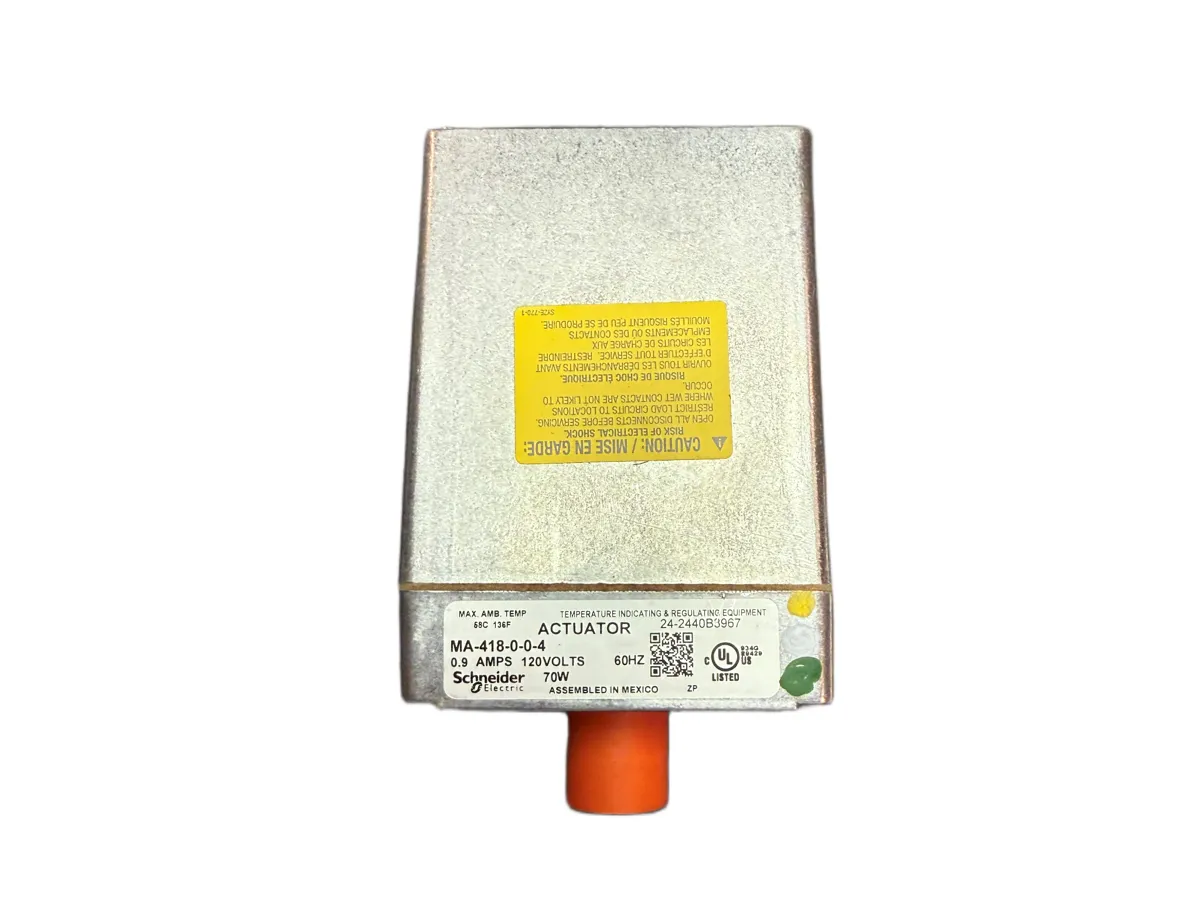

MA-418 Schneider Electric (Barber Colman) Damper Actuator

(1 customer review)

$409.00

Two Position Actuator, 120V, Spring Return, 60 Lb-In Torque, Output Shaft must be Horizontal for Mounting, 70 Watts Running Input, 25 Watts Holding; Elec, 2Pos, SR, 120 VAC, TB, 60 in-lb, Rotary, N1, Erie

13 in stock

Description

User Guide

The Schneider Electric / Barber Colman MA-418 Two Position Damper Actuator, 120V, Spring Return, 60 Lb-In Torque, Output Shaft must be Horizontal for Mounting, 70 Watts Running Input, 25 Watts Holding

Application

For two-position operation of dampers, valves, and other equipment which require the return to normal position upon power interruption. Hazardous location models offer a sturdy cast aluminum case with bolted cover. They have two 3/4″ pipe tapped openings for joints with rigid metal conduit. All wiring is brought out to separate terminals for ease of installation. These factory enclosure and actuator assemblies are Underwriters Laboratories listed.

Features

  • Compatible with most SPST control devices
  • Spring return
  • 24, 120, 208, and 240 Vac models
  • Actuators with part number suffix “-500” are equipped with SPDT auxiliary switch
  • Actuator has a rugged die cast aluminum housing with two 1/2” conduit openings
  • Hazardous location actuator housing has two 3/4″ pipe taped openings for rigid metal conduit connection
  • Oil immersed motor and gear train

Specifications

  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Power Input Voltage: 120 VAC
  • Leads and Connections: Terminal Block
  • Torque: 60 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 1
  • Product Line: Schneider Electric
  • Product Range: Gear Train
  • Product Series: MAx-4xx
  • Actuator Use: Dampers, Globe Valves
Actuator: (MA-418):

  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Power Input Voltage: 120 VAC
  • Leads and Connections: Terminal Block
  • Torque: 60 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 1
  • Product Line: Schneider Electric
  • Product Range: Gear Train
  • Product Series: MAx-4xx
  • Actuator Use: Dampers, Globe Valves
Product Specifications
Actuator Housing Material Aluminum die cast
Actuator Type Electric
Actuator Use Dampers
Globe Valves
Auxiliary Switch 2
By Schneider Yes
California Residents  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Conduit Connection 1/2 in
Control Signal 2-Position (On/Off)
Humidity 5 to 95% non-condensing
IP Protection Rating IP10
Leads and Connections Terminal Block
Loss of Power Type Spring Return
Mechanical Movement Rotary
Motor Type Oil immersed
Override 5/32 Allen wrench
Position Indicator Stroke indicator on bracket
Power Consumption Running VA 108.00 VA
Power Input Frequency 60 Hz
Power Input Voltage 120 VAC
Product Range Gear Train
Product Series MAx-4xx
Rotation 180 degrees
Temperature Ambient Operating Range -40 to 57.7 C (-40 to 136 F)
Temperature Shipping and Storage Range -40 to 57.7 C (-40 to 136 F)
Torque 6.78 Nm
60.01 in-lb

Accessories:

Additional information

Weight 8.8 lbs
Dimensions 9 × 8 × 7 in
Manufacturer

, ,

Part Number

MA-418
