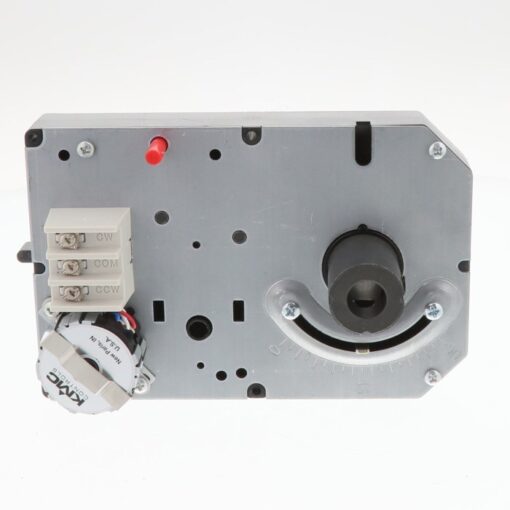

The KMC MEP-5061/5071 3-wire ControlSet Actuators are designed to control small dampers such as air terminal unit dampers or VEP-40 series valves. The MEP-5061 is an 18/minute actuator and the MEP-5071 is a 60/minute actuator. The actuator mounts to a 1/2” or 3/8” diameter damper shaft, eliminating the need for expensive and complicated linkages. When mounting to a 3/8” diameter shaft, the HFO-0011 shaft adaptor is required and must be ordered separately. These bidirectional motors may be controlled via an SPDT floating thermostat or building automation system. A minimum of 50 in-lb of torque over the maximum angular rotation of 95 is provided. Both minimum and maximum end stops are standard to limit the rotation. A gear disengagement feature allows positioning of the damper and/or gear train without energizing the actuator. An optional feedback potentiometer and/or a single, double or triple auxiliary switch can be field added. (The MEP-5063/5065/5073 actuators are obsolete. See the MEP-5061/5071 instead.)
Specifications
Actuator Type | Electric |
---|---|
Brand | KMC Controls |
Control Input | 24 VAC |
Fail-Safe | No |
Input Types | Tri-state |
Mounting | V-Bolt/ Screws |
Normality (Fail) | Fail In Place |
Power Supply | 24 VAC |
Selection Guide | Actuator-Only |
Timing (sec) | 18 Deg /MIN |
Torque | 50 in-lb |
