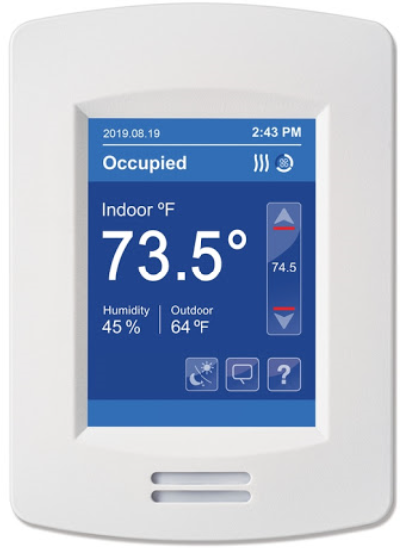

Low-voltage microprocessor-based Variable Air Volume (VAV) controller.
Configurable to support damper control for Pressure Independent and Pressure Dependent VAV systems.
Pre-programmed, containing all required I/O to accomplish VAV Application.
Embedded local configuration utility using the touch screen allowing for simplified configuration, sequence selection, re-initialization, setting of setpoints and control of display settings.
Accurate temperature control using a PI proportional-integral algorithm.
Integrated Changeover function.
Configurable temporary or permanent local override set points.
Local or remote override during unoccupied mode.
Adjustable local unoccupied heating and cooling set point limits as well as maximum heating and minimum cooling limits.
Adjustable dead and proportional bands
Remote night set back.
Door, Window, Wall, Ceiling or Motion detection.
Custom Programs using LUA Scripts.
Ready for networked communication with a Building Management system using BACnet™ (MSTP on board, or IP via Wi-Fi), ZigBee™ Pro, or Modbus (RS-485), as needed.
Optionally, models can be equipped with an integrated motion sensor (PIR) and ZigBee™ Pro.
Fresh air control is supported when a CO2 sensor is integrated into the system.
LED-backlit LCD touch screen.
Display colors of LCD screen: 10 color options.
22 Configurable languages.
Over 12 customized screens are available for both Commercial and Hospitality use cases.
EEPROM memory to back up local configuration parameters in the event of power failure.
[Us] rated supply voltage | 24 V AC +/- 15 % |
Application | Variable air volume / pressure dependent and pressure independent |
AWG Gauge | AWG 24…AWG 18 |
Brand | Schneider Electric |
By Schneider | Yes |
California proposition 65 | WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Color Casing | White |
Communication Port Protocol | BACnet IP |
BACnet MS/TP | |
Modbus | |
Zigbee Pro | |
Depth | 0.98 in (2.5 cm) |
Economizer | No |
Final Result for Connectable | Connectable ready |
Final Result for Flywheel performance tracking | Edge control |
Height | 4.72 in (12 cm) |
Humidity Control | Yes |
Humidity Measurement Drift | Less Than 0.25 % Yearly |
Humidity Setting Range | Dehumidification 30…95 % |
Information Displayed | Temperature – 40…122 °F |
Measurement Accuracy | Humidity 10 %, 10…20 % |
Humidity 10 %, 80…90 % | |
Humidity 5 %, 20…80 % | |
Temperature +/- 0.9 °F, | |
Net Weight | 0.75 lb(US) (0.34 kg) |
Network Frequency | 50 Hz |
60 Hz | |
Output Current | 1 A binary outputs |
3 A binary outputs inrush) | |
Output Type | 4 xbinary outputs |
4 xuniversal outputs | |
PIR Cover | Yes |
Product Alert | We are currently experiencing delays on this product. As we work to return it to normal, inventory and lead times may not be accurate. Please use the chat feature to contact CCC for additional details |
Proportional Band | Cooling and Heating default 3.2 °F (1.8 °C) |
Relative Humidity | 0…75 % RH, non-condensing |
Scheduling | Yes |
Sensor Type | Temperature: 10 kOhm T2 NTC thermistor |
Storage Relative Humidity | 0…95 % RH, non-condensing |
Temperature Ambient Operating Range | 32…122 °F (0…50 °C) |
Temperature Setting Range | 40…90 °F (4.5…32 °C) heating |
54…100 °F (12…37.5 °C) cooling | |
Temperature Shipping and Storage Range | -22…122 °F (-30…50 °C) |
Width | 3.39 in (8.6 cm) |
