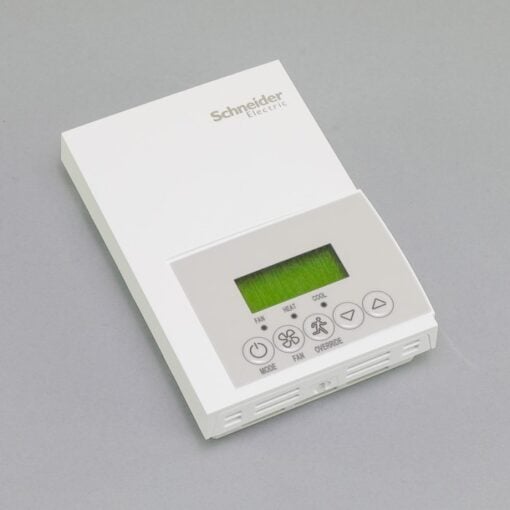

LWV FCU SA RH 0-10V COMM
Low-Voltage Fan Coil Room Controller: Stand Alone, RH sensor & control, Analog 0-10 Vdc, Commercial/Override
Product Specifications
| [Us] rated supply voltage | 10…30 V AC 50/60 Hz |
| Application | Low voltage fan coil |
| AWG Gauge | AWG 22…AWG 18 |
| Brand | Schneider Electric |
| By Schneider | Yes |
| California proposition 65 |  WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Communication Port Protocol | Stand-Alone (Network Ready) |
| Connections – Terminals | Screw terminal |
| Depth | 1.18 in (29.97 mm) |
| Device Presentation | Without cover |
| Device Short Name | SE7300 |
| Directives | 89/336/EEC – electromagnetic compatibility |
| Economizer | No |
| End of commercialization annoucement date | 07/01/2021 |
| End of commercialization date | 12/31/2021 |
| Final Result for Flywheel performance tracking | Edge control non-recurring |
| Height | 4.92 in (124.97 mm) |
| Humidity Calibration Certificate | 1 pt |
| Humidity Control | Yes |
| Humidity Setting Range | Dehumidification 15…95 % |
| Humidification 10…90 % | |
| Information Displayed | Temperature – 40…122 °F |
| Input Type | Dry contact 1.0 |
| Insulation Class | Class II |
| internal resistance | >= 2 kOhm |
| Manufacturer | Schneider Electric |
| Market Segment | Small commercial |
| Measurement Accuracy | Humidity +/- 5 %, 20…80 % RH non-condensing) |
| Temperature +/- 0.9 °F, at 70 °F typically calibrated) | |
| Net Weight | 0.75 lb(US) (0.34 kg) |
| Network Frequency | 50 Hz |
| 60 Hz | |
| Number Of Steps | 3 |
| Output Current | <= 5 mA universal output |
| Output Type | 1 xanalog |
| 2 xuniversal | |
| Output Voltage | 0…10 V DC universal output |
| 30 V AC universal output | |
| PIR Cover | No |
| Product Alert | We are currently experiencing delays on this product. As we work to return it to normal, inventory and lead times may not be accurate. Please use the chat feature to contact CCC for additional details |
| Product Certifications | CE |
| C-tick AS/NZS CISPR 22 | |
| FCC CFR 47 part 15 class A | |
| UL listed file E27734 CCN XPAX | |
| UL listed file E27734 CCN XPAX7 | |
| Product Name | SE7000 Series |
| Product Or Component Type | Room controller |
| Range | EcoStruxure Building Expert |
| Range Compatibility | communication card |
| relay | |
| sensor | |
| sensor coverplate | |
| temperature sensor | |
| Rated Operational Power In Va | 2 VA |
| Relative Humidity | 0…95 % RH, non-condensing |
| Scheduling | No |
| Sensor Type | Humidity: single point calibrated bulk polymer RH sensor |
| Temperature: 10 kOhm T2 NTC thermistor | |
| Standards | CSA C22.2 No 24 |
| FCC part 15 subpart B | |
| ICES-003 | |
| UL 873 | |
| Temperature Ambient Operating Range | 32…122 °F (-0…50 °C) |
| Temperature Setting Range | 0.9 °F (-17 °C) per step |
| 40…90 °F (4…32 °C) heating | |
| 54…100 °F (12…38 °C) cooling | |
| Temperature Shipping and Storage Range | -22…122 °F (-30…50 °C) |
| Width | 3.42 in (86.87 mm) |
Documents
| Application guide | SE7000 Fan Coil Unit Application Guide | |||
| Comparison guide | Product Comparison Guide SE8000 and SE7000 Series Room Controllers | |||
| Data sheet | Room Controller SE7300 Low Voltage Fan Coil Controller | |||
| Installation guide | PIR Cover Install Guide for PIR Cover for SE7000 Room Controller | |||
| Quick reference guide | SE7000 Quick Reference Guide |
| Weight | 2 lbs |
|---|---|
| Dimensions | 7 × 5 × 3 in |
