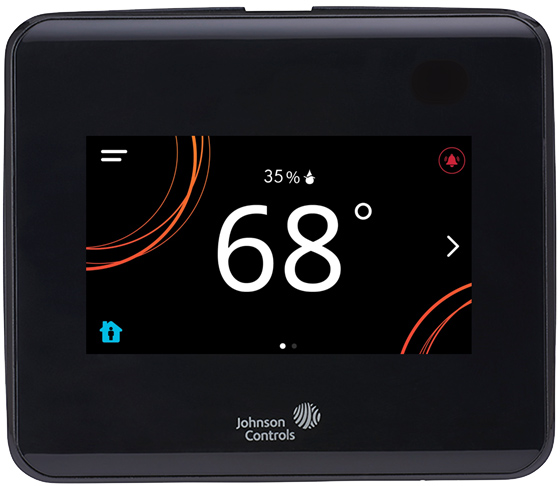

TEC3613-13-000 Johnson Controls Thermostat
TSTAT; N2 & MSTP; BLACK; TSTAT; MSTP OR N2; FCU/VAV; ON/OFF OR FLOATING; OCC & DEHUMID; FULL COLOR;
Introduction/overview
The TEC3000 Color Series Thermostat Controllers are wireless, stand-alone, and field-selectable BACnet® MS/TP or N2 networked devices that provide on/off, floating, and proportional control of the following:
- Local hydronic reheat valves
- Pressure-dependent VAV equipment with or without local reheat
- Two- or four-pipe fan coils
- Cabinet unit heaters
- Other zoning equipment using an on/off, floating, or 0 to 10 VDC proportional control input
- Single- or two-stage control of unitary rooftop units (RTUs)
- Single- or two-stage control of RTUs with economizers
- Single- or two-stage control of heat pumps
- Single- or two-stage control of heat pumps with economizers
You can remote monitor and program the wireless and field-selectable BACnet MS/TP or N2 networked thermostat controllers through the building automation system, for efficient space temperature control. The wireless thermostat controllers feature a connection to the ZFR Pro wireless network. All models include a USB port configuration that reduces installation time by allowing simple backup and restore features from a USB drive, which enables rapid cloning of configuration between like units. The programming memory of all TEC3000 Series Thermostat Controllers is non-volatile. Some models feature a built-in occupancy sensing capability. These thermostat controllers use additional standby setpoints to maximize up to 30% energy savings in high-energy usage commercial buildings, such as schools and hotels, during occupied times.
A bright, high-definition capacitive touchscreen display provides responsive feedback and improved readability of text and icons. The home screen is configurable to Modern and Classic, and Light and Dark themes.
Models are available in modern black or white highgloss designs with or without the Johnson Controls® logo.
The following fan configurations are supported for fan coil equipment types:
- Single-speed
- Multi-speed (two or three discrete speeds)
- Variable-speed/EC motors (0 to 10 VDC control)
Selection Charts
|
Table 1. Wireless ZFR182x Pro Series thermostat controller models |
|||||
|
Code number |
Control output |
Occupancy |
Dehumidification |
Johnson Controls logo |
Color |
|
On/off or floating fan coil and zoning |
No |
Yes |
Yes |
Black |
|
|
On/off or floating fan coil and zoning |
No |
Yes |
Yes |
White |
|
|
On/off or floating fan coil and zoning |
No |
Yes |
No |
Black |
|
|
On/off or floating fan coil and zoning |
No |
Yes |
No |
White |
|
|
On/off or floating fan coil and zoning |
Yes |
Yes |
Yes |
White |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
No |
Yes |
Yes |
Black |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
No |
Yes |
Yes |
White |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
No |
Yes |
No |
White |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
Yes |
Yes |
Yes |
White |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
Yes |
Yes |
No |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
No |
Yes |
Yes |
Black |
|
|
Single- or two-stage RTU/heat pump with economizer |
No |
Yes |
Yes |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
No |
Yes |
No |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
Yes |
Yes |
Yes |
White |
|
|
Table 2. Wireless ZFR183x Pro Series thermostat controller models |
|||||
|
Code number |
Control output |
Occupancy |
Dehumidification |
Johnson Controls logo |
Color |
|
On/off or floating fan coil and zoning |
No |
Yes |
Yes |
White |
|
|
On/off or floating fan coil and zoning |
Yes |
Yes |
Yes |
White |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
No |
Yes |
Yes |
White |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
Yes |
Yes |
Yes |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
No |
Yes |
Yes |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
Yes |
Yes |
Yes |
White |
|
Important: ZFR182x Pro Series Wireless System compatible TEC30xx-1x-000 models and ZFR183x Pro Series Wireless System compatible TEC31xx-1x-000 models are not compatible with each other and cannot be used under the same PAN ID (network address).
|
Table 3. Stand-alone thermostat controller models |
|||||
|
Code number |
Control output |
Occupancy |
Dehumidification |
Johnson Controls logo |
Color |
|
On/off or floating fan coil and zoning |
No |
Yes |
Yes |
Black |
|
|
On/off or floating fan coil and zoning |
No |
Yes |
Yes |
White |
|
|
On/off or floating fan coil and zoning |
No |
Yes |
No |
White |
|
|
On/off or floating fan coil and zoning |
Yes |
Yes |
Yes |
White |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
No |
Yes |
Yes |
Black |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
No |
Yes |
Yes |
White |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
No |
Yes |
No |
White |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
Yes |
Yes |
Yes |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
No |
Yes |
Yes |
Black |
|
|
Single- or two-stage RTU/heat pump with economizer |
No |
Yes |
Yes |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
No |
Yes |
No |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
Yes |
Yes |
Yes |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
Yes |
Yes |
No |
Black |
|
|
Table 4. Field-selectable BACnet MS/TP or N2 Networked thermostat controller models |
|||||
|
Code number |
Control output |
Occupancy |
Dehumidification |
Johnson Controls logo |
Color |
|
On/off or floating fan coil and zoning |
No |
Yes |
Yes |
Black |
|
|
On/off or floating fan coil and zoning |
No |
Yes |
Yes |
White |
|
|
On/off or floating fan coil and zoning |
No |
Yes |
No |
Black |
|
|
On/off or floating fan coil and zoning |
No |
Yes |
No |
White |
|
|
On/off or floating fan coil and zoning |
Yes |
Yes |
Yes |
Black |
|
|
On/off or floating fan coil and zoning |
Yes |
Yes |
Yes |
White |
|
|
On/off or floating fan coil and zoning |
Yes |
Yes |
No |
Black |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
No |
Yes |
Yes |
Black |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
No |
Yes |
Yes |
White |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
No |
Yes |
No |
White |
|
|
0 VDC to 10 VDC proportional fan coil and zoning |
Yes |
Yes |
Yes |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
No |
Yes |
Yes |
Black |
|
|
Single- or two-stage RTU/heat pump with economizer |
No |
Yes |
Yes |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
No |
Yes |
No |
White |
|
|
Single- or two-stage RTU/heat pump with economizer |
Yes |
Yes |
Yes |
White |
|
| Weight | 3 lbs |
|---|---|
| Dimensions | 7 × 6 × 3 in |
| Manufacturer |
